Taramps T 0602 Audio Mixer

$159 $124
22% OFF
Take full control of your sound with the T 0602 mixer. With 6 input channels and 16 connections, it supports diverse audio sources like mics and instruments. Each channel offers 4-band EQ and precise gain settings, plus visual LED indicators and V.U. output for optimal sound quality with minimal noise.
RANGE
2Hz ~ 76Khz
30 DAY RETURN POLICY
1 YEAR WARRANTY
USA FREE SHIPPING
Specs & Downloads
Recommended Products
Reviews
Recently Viewed

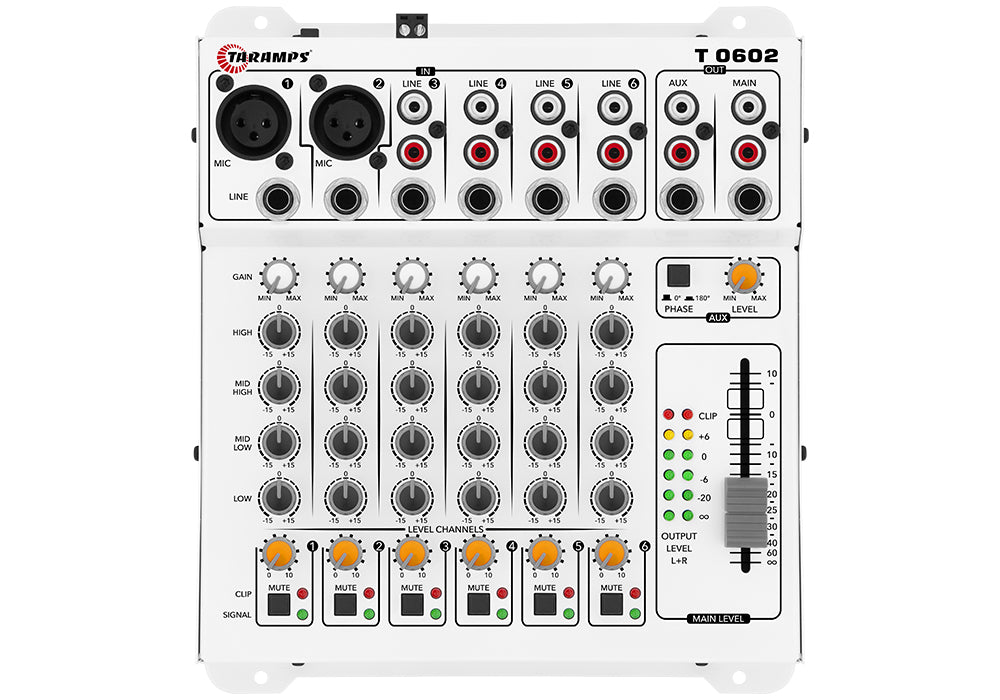

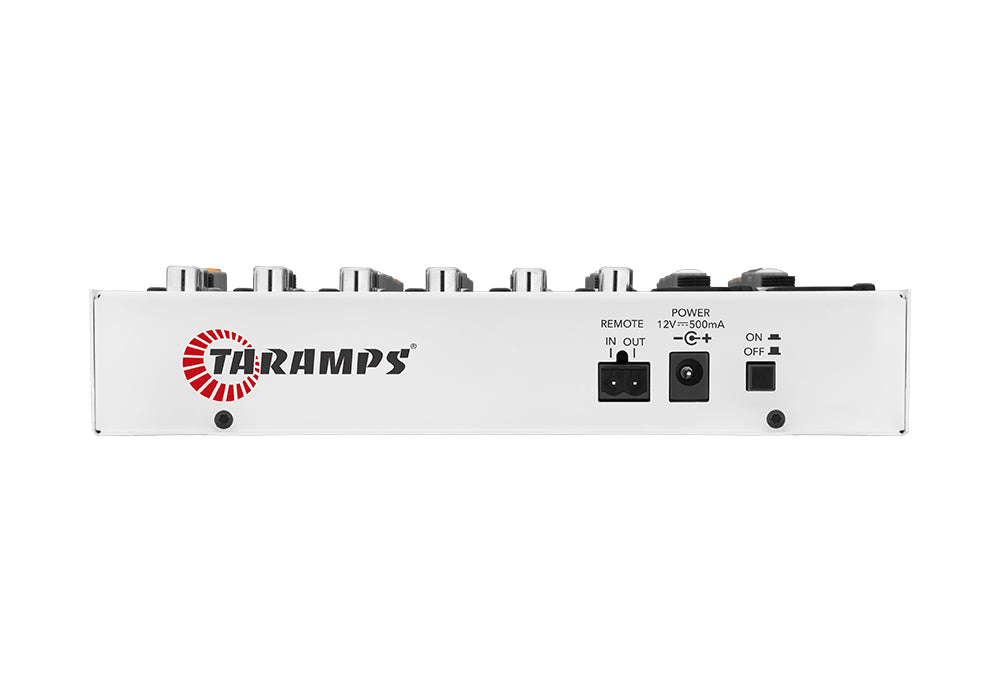

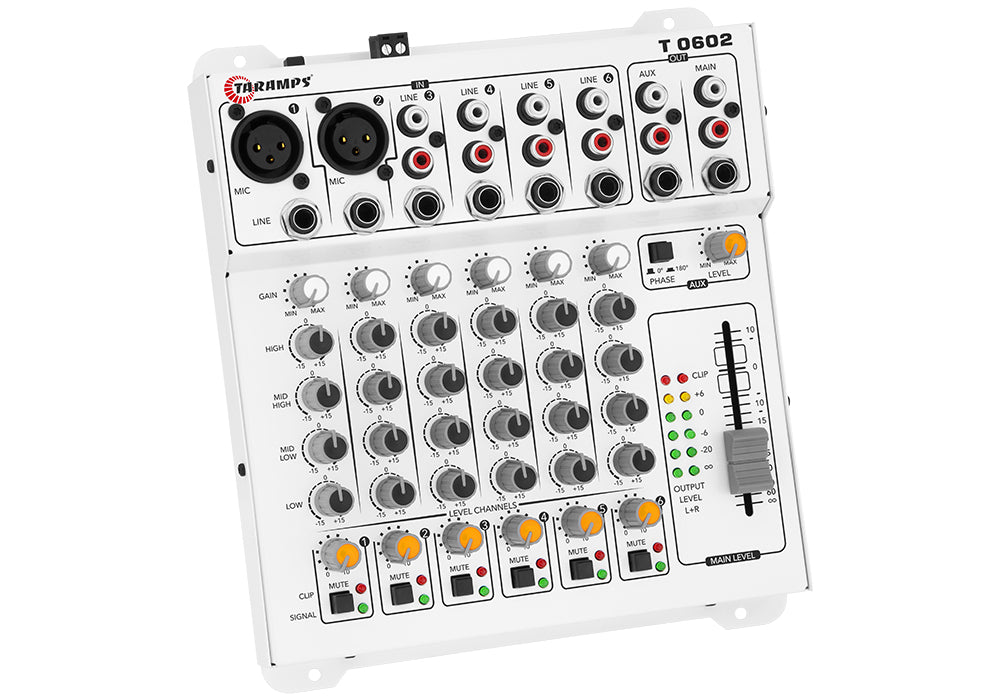

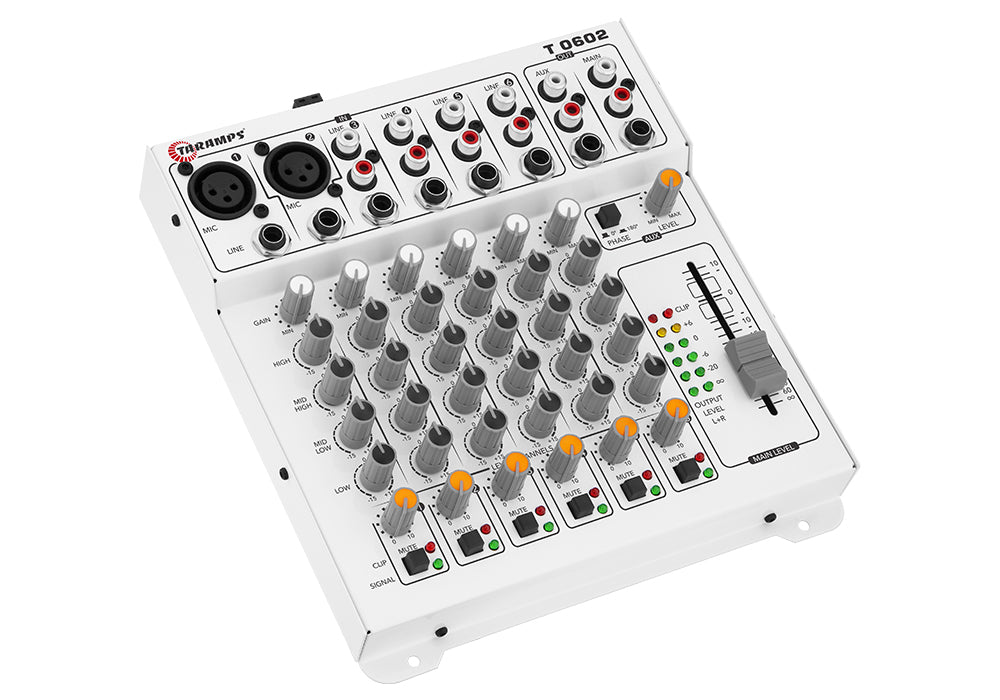

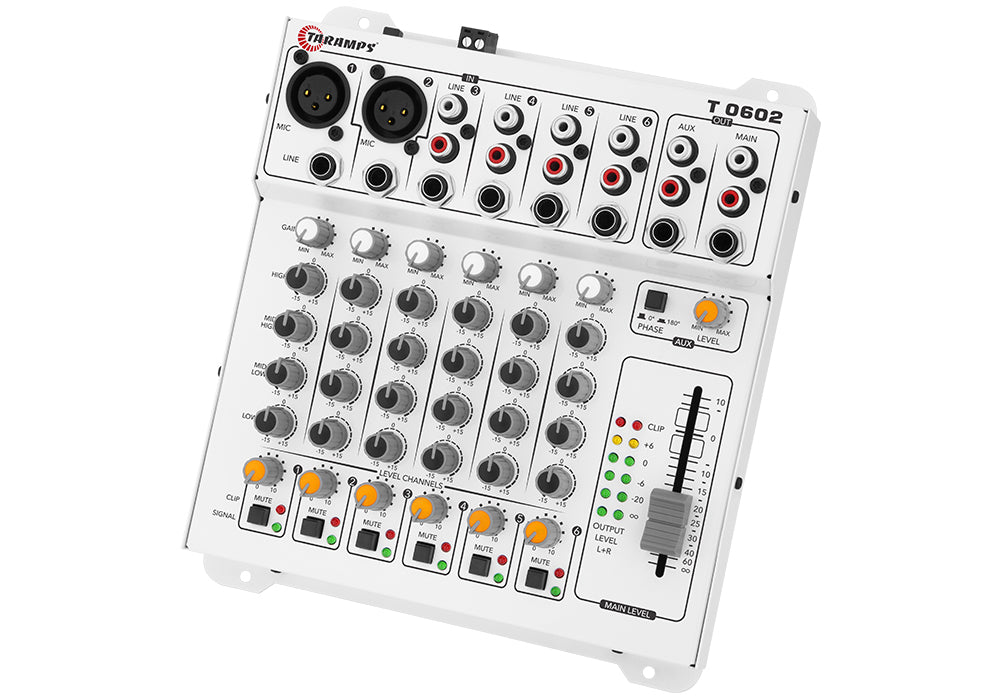

THE T 0602 MIXER

With the T 0602 mixer, you can control and mix your sound system with much more ease and simplicity. Its six input channels, with 16 connections allow several mixing possibilities, among them are: microphone, head units, musical instruments (eg keyboard and guitar), etc. With gain and Level adjustment on all channels, it allows your gain structure to be impeccable.

In addition, to give that special touch to adjustments, all channels have tonal equalization in 4 bands (bass, low mid, high mid and high). And the visual indication of each channel with On, Clipping and Signal LEDs could not be missing, as well as V.U. output where we can guarantee more sound volume without unwanted distortions, guaranteeing a very low level of noise or humming.

DESIGNED FOR MAXIMUM CONTROL

Through the two output channels, we can send audio signal to peripherals such as equalizers, audio processors or directly to amplifiers. It is also possible to use the auxiliary output to send audio to other systems, making it possible to control the volume and adjust the phase, correcting possible cancellations. T 0602, quality and control at your reach.

SPECS & DOWNLOADS

DIMENSIONS
7.64" x 1.65" x 8.66" (194 × 42 x 220 mm)
POWER
9 ~ 16 VDC
INPUT SENSITIVITY
Channels 1 & 2: Mic (XLR) Min: 500mV ~ Max 7mV Line (P10) Min: 620mV ~ Max 7.6mV Channels 3~6: Line (P10/RCA) Min: 2.55V ~ Max: 60mV
SIGNAL TO NOISE RATIO
112dB
FREQUENCY RESPONSE
2Hz ~ 76Khz
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
500 mA
WEIGHT
2.16lb (0,98Kg)
EAN
7898556848282
