3000 Watts

Taramps SMART3 BASS Car Audio Amplifier

$306 $260
Sold out
Elevate your car audio with the Taramps Smart 3 BASS, a multi-impedance, single-channel amplifier that delivers a consistent 3000 WRMS between 0.5 and 2 ohms. Designed for seamless integration, it supports up to 1 AWG power cables and features an output for a CLIP monitor. Dive into a new level of audio experience with the reliability and innovation of the Taramps Group.
IMPEDANCE
0.5 and 2 OHMS
EFFICIENCY
75%
RANGE
8Hz ~ 200Hz (-3dB)
30 DAY RETURN POLICY
1 YEAR WARRANTY
USA FREE SHIPPING
Specs & Downloads
Recommended Products
Reviews
Recently Viewed

THE SMART3 BASS

The Smart 3 BASS is another innovation by Taramps. Aiming at car audio systems. It is multi-impedance, single channel amplifier, that is, it delivers the 3000 WRMS in any impedance between 0.5 and 2 ohms. It has an indicative logo that you already know, robust power input, connecting cables up to 1 AWG (50mm²) as well as an output for CLIP monitor. Dive into this new experience with Taramps Group!

MULTI-IMPEDANCE BASS TECHNOLOGY

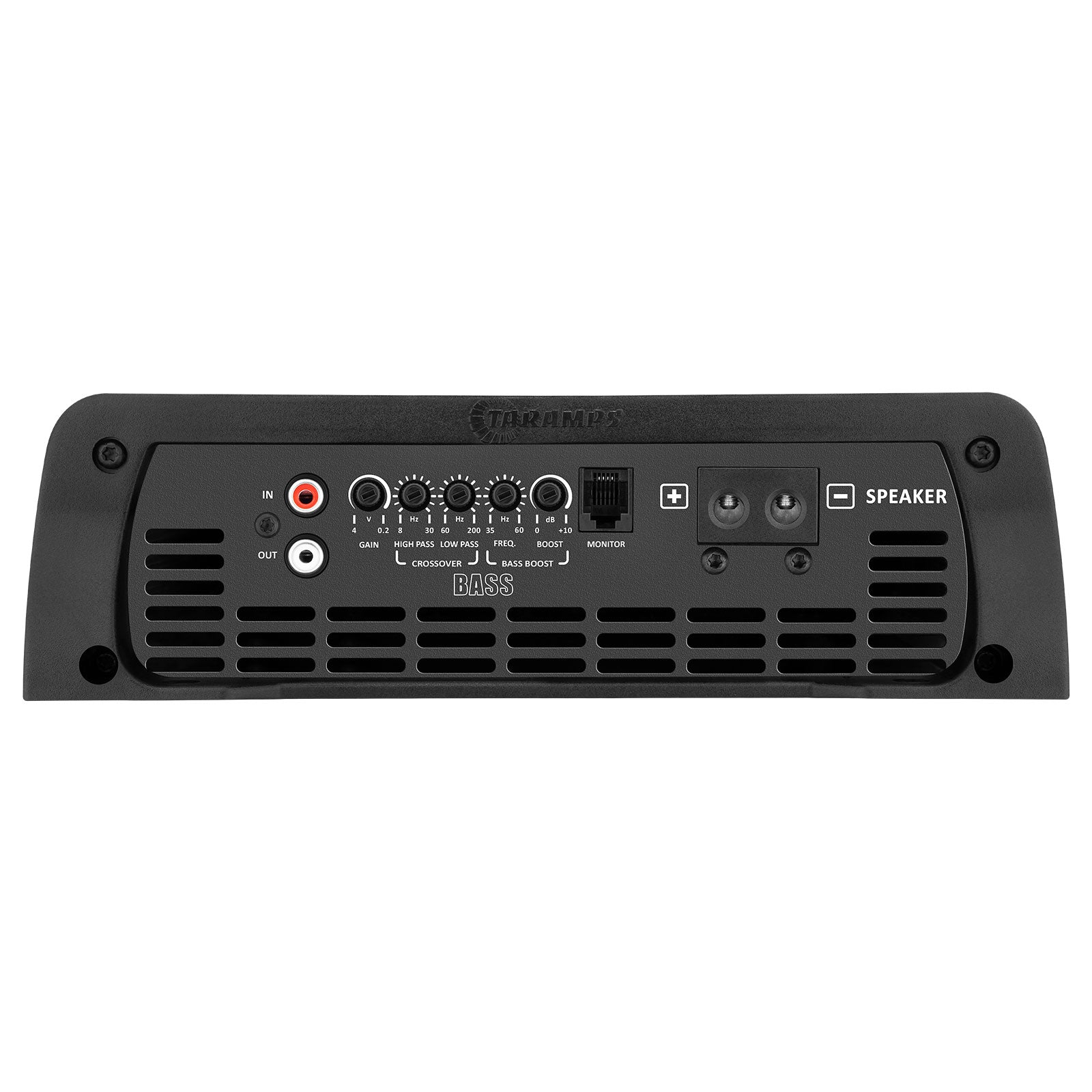

IN Input of signal to be amplified. OUT Audio signal output. GAIN Adjusts the input sensitivity of the amplifier, allowing a perfect adjustment to the output signal levels. CROSSOVER with High Pass and Low Pass BASS BOOST with Frequency and Boost SPEAKER Output (positive and negative) for connecting transducers (speakers).

SPECS & DOWNLOADS

DIMENSIONS
9.37" x 2.80" x 9.45" (238 x 71 x 240mm)
POWER
3000 Watts
CONNECTIVITY
1
DOWNLOADS
Download PDF
CROSSOVER HIGH PASS (HPF)
8Hz ~ 30Hz (-12dB/8ª) Variable
CROSSOVER LOW PASS (LPF)
60Hz ~ 200Hz (-12dB/8ª) Variable
INPUT IMPEDANCE
10K ohms
OUTPUT IMPEDANCE
0.5 ~2 ohms
PROTECTION SYSTEM
Output short-circuit low/high supply voltage thermal protection
MINIMUM SUPPLY VOLTAGE
9 VDC
MAXIMUM SUPPLY VOLTAGE
17 VDC
CONSUMPTION AT REST
1.10A
MAXIMUM MUSIC CONSUMPTION
190A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
278A
WEIGHT
6.60lb (3Kg)
EAN
7898556847414
