5000 Watts

Taramps MD 5000.1 Car Audio Amplifier

$422 $375
11% OFF
Unlock superior sound with the Taramps MD 5000.1 amplifier, delivering 5000 Watts RMS and full-range audio (10Hz to 10KHz). Perfect for diverse car audio setups, this high-efficiency, mono module ensures crystal-clear quality across all frequencies
IMPEDANCE
1 and 2 OHMS
EFFICIENCY
81%
RANGE
(10Hz ~10KHz(-3dB)
30 DAY RETURN POLICY
1 YEAR WARRANTY
USA FREE SHIPPING
Specs & Downloads
Recommended Products
Reviews
Recently Viewed

THE MD 5000.1

The Taramps MD 5000.1 at the 1 or 2-ohm version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the whole frequency range, that is to say that it is a FULL RANGE (10Hz ~10 KHz (-3dB)) module. It is classified as mono and has a channel with a maximum power of 5000-Watts RMS. Welcome to Taramps audio world.

POWERFUL TECHNOLOGY

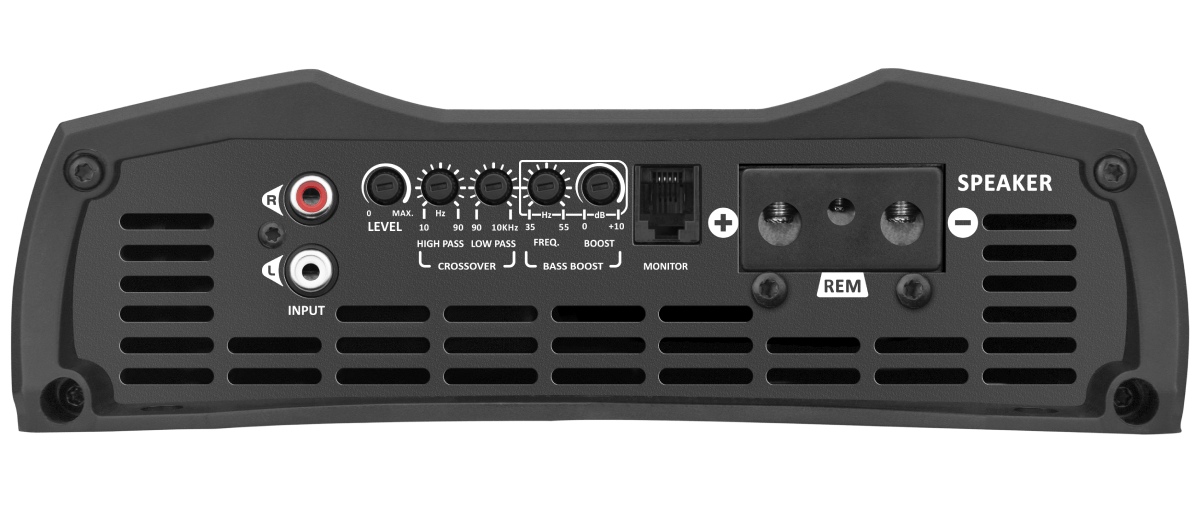

INPUT (R and L) Inputs of signals to be amplified. LEVEL It sets the amplifier input sensitivity, which allows an optimal adjustment to the output signals levels. CROSSOVER with High Pass and Low Pass. BASS BOOST with Freq. and Boost.

SPECS & DOWNLOADS

DIMENSIONS
8.98" x 2.76" x 12.87" (228 x 70 x 327mm)
POWER
5.000 Watts
CONNECTIVITY
1
DOWNLOADS
Download PDF
OPERATION CLASS
D
NUMBER OF CHANNELS
1
INPUT SENSITIVITY
220mV
SIGNAL TO NOISE RATIO
>90dB
FREQUENCY RESPONSE
10Hz ~ 10KHz (-3dB)
CROSSOVER HIGH PASS (HPF)
10Hz ~ 90Hz (-12dB/8ª) Variable
CROSSOVER LOW PASS (LPF)
90Hz ~ 10KHz (-12dB/8ª) Variable
INPUT IMPEDANCE
15K Ohms
OUTPUT IMPEDANCE
1 OR 2 OHMS
PROTECTION SYSTEM
Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection.
MINIMUM SUPPLY VOLTAGE
9VDC
MAXIMUM SUPPLY VOLTAGE
16VDC
CONSUMPTION AT REST
1.20A
MAXIMUM MUSIC CONSUMPTION
244.50A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
489A
WEIGHT
9.28lb (4.22Kg)
EAN
7898556844697
