5000 Watts

Taramps SMART5 BASS Car Audio Amplifier

$539 $479
11% OFF
Experience unmatched bass with the Taramps Smart 5 BASS amplifier, designed specifically for subwoofers. This powerhouse delivers 5000 WRMS across 0.5 to 2 ohms and features the exclusive Power Control System technology for optimal low-frequency quality and security. Equipped to handle up to 2 x 2/0 AWG cables and including a CLIP monitor output, it guarantees a profound bass experience.
IMPEDANCE
0.5 to 2 OHMS
EFFICIENCY
76% at 0.5 ohm; 80% at 1 ohm; 84% at 2 ohms
RANGE
8Hz ~ 200Hz (-3dB)
30 DAY RETURN POLICY
1 YEAR WARRANTY
USA FREE SHIPPING
Specs & Downloads
Recommended Products
Reviews
Recently Viewed

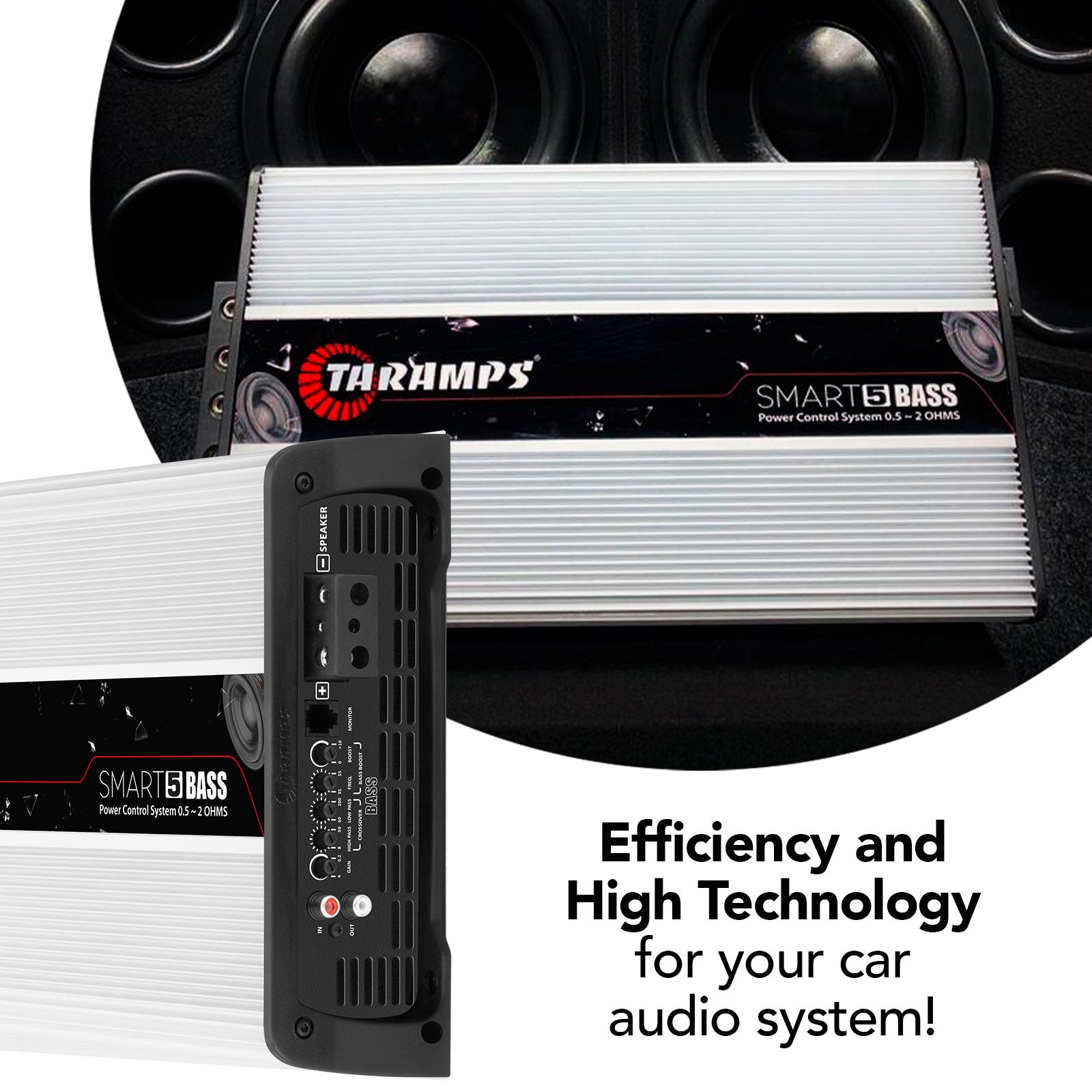

THE SMART5 BASS

The Smart 5 BASS is another innovation by Taramps. Aiming at car audio systems. The exclusive Power Control System technology, now specific for subwoofers, ensures even more quality at low frequencies delivering more security by monitoring the whole amplifier operation, It is multi-impedance, single-channel amplifier, that is, it delivers the 5000 WRMS in any impedance between 0.5 and 2 Ohms. It has an indicative logo that you already know, robust power input, connecting cables up to 2 x 2/0 AWG (70mm²) and output for CLIP monitor. Feel the bass in an unforgettable way!

MAXIMUM POWER, VERSATILITY

The Smart 5 Bass delivers 5000W RMS specifically tuned for sub-bass frequencies, providing deep, powerful bass performance for car audio systems, perfect for enhancing low-end sound quality.

SPECS & DOWNLOADS

DIMENSIONS
9.37" x 2.79" x 16.8" (238 x 71 x 427mm)
POWER
5000 Watts
CONNECTIVITY
1
DOWNLOADS
Download PDF
NUMBER OF CHANNELS
1
MAXIMUM POWER
Nominal Power @14.4VDC 0.5 Ohm: 5000W RMS 1 Ohm: 5000W RMS 2 Ohms: 5000W RMS 4 Ohms: 2700W RMS
INPUT SENSITIVITY
4V ~ 0.2V
SIGNAL TO NOISE RATIO
>90dB
FREQUENCY RESPONSE
8Hz ~ 200Hz (-3dB)
CROSSOVER HIGH PASS (HPF)
8Hz ~ 30Hz (-12dB/8ª) Variable
CROSSOVER LOW PASS (LPF)
60Hz ~ 200Hz (-12dB/8ª) Variable
INPUT IMPEDANCE
10K Ohms
OUTPUT IMPEDANCE
0.5 ~ 2 Ohms
PROTECTION SYSTEM
Short on output Short on output in relation to GND Low impedance protection High/low voltage protection Thermal protection.
MINIMUM SUPPLY VOLTAGE
9.5VDC
MAXIMUM SUPPLY VOLTAGE
17VDC
CONSUMPTION AT REST
2.60A
MAXIMUM MUSIC CONSUMPTION
230A @ 0.5 Ohm | 215.5A @ 1 Ohm | 210A @ 2 Ohms
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
461A @ 0.5 Ohm | 431A @ 1 Ohm | 420A @ 2 Ohms
WEIGHT
12.79 lbs (5,80Kg)
EAN
7898556847483
