Taramps TS 1200x4 Car Audio Amplifier

$139

The TS 1200×4 2 Ohms amplifier offers 1200 watts of power across 4 channels with bridge capability, perfect for enhancing your car's audio. With automatic activation, RCA inputs, gain control, and built-in crossover filters, it ensures top performance for speakers, drivers, and tweeters. Ideal for seamless installation!

IMPEDANCE
2 Ohms
RANGE
FULL RANGE
30 DAY RETURN POLICY
1 YEAR WARRANTY
USA FREE SHIPPING
Specs & Downloads
Recommended Products
Reviews
Recently Viewed

THE TS 1200X4

We present the new TS 1200×4 2 Ohms. This amplifier has been carefully designed to meet the diverse needs of automotive sound systems, including internal sounds projects in the vehicle, with original players.

Its new input of4 individual channels and automatic activation, make it ideal for this type of application, eliminating the need for adapters.

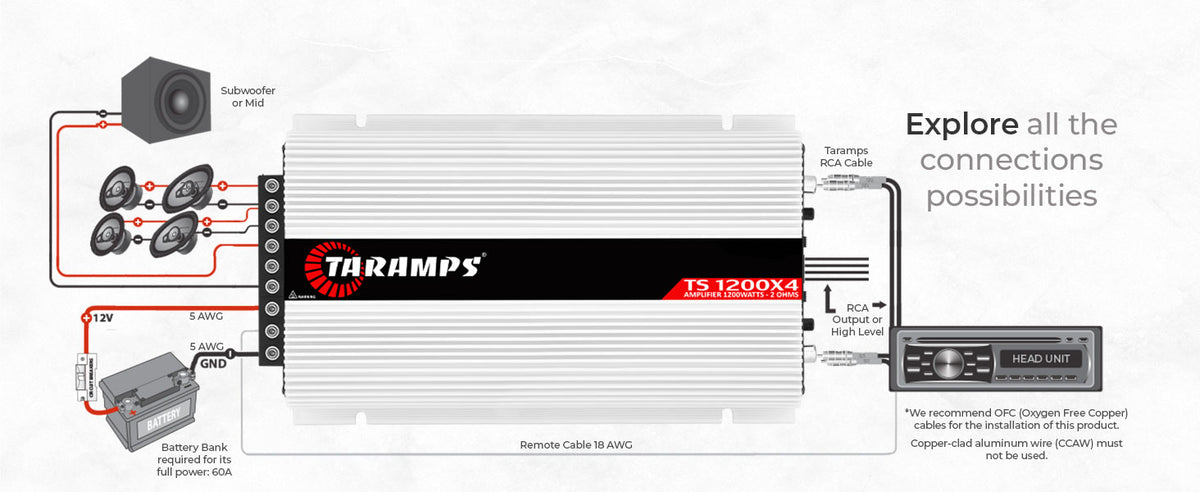

With 1200 watts of Power distributed in 4 channels and the possibility of connection in Bridge, it can be used with the most varied models of speakers, drivers and super tweeters. And also, it has the traditional RCA inputs, gain adjustment and fixed Crossover (HPF, LPF and Full), feature of Taramps products.

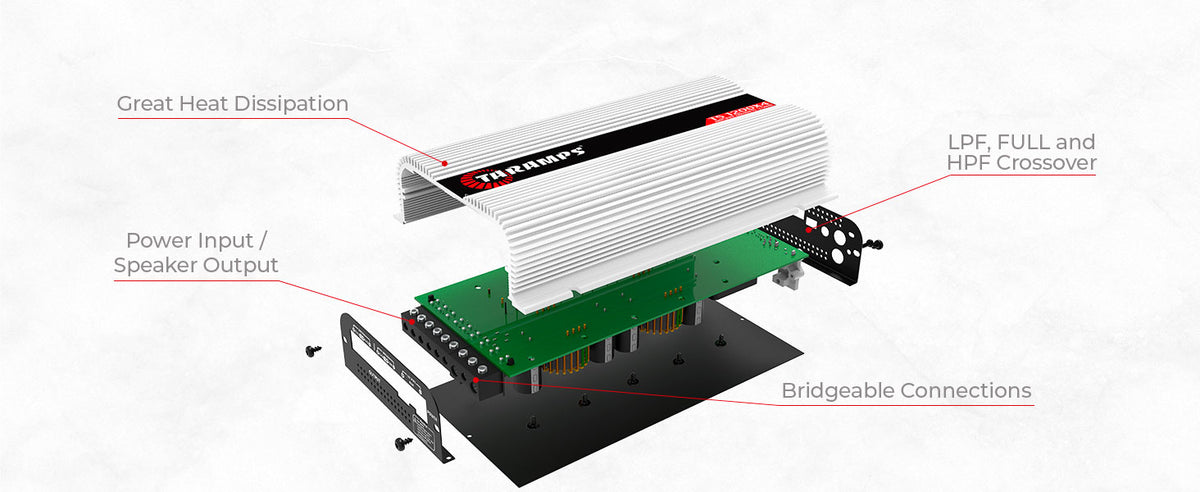

Another feature is the power and output connector, besides being robust, ensures great performance and safety in the installation.

All this and much more, so that your pleasure in listening to music is even better.

SUPERIOR VERSATILITY

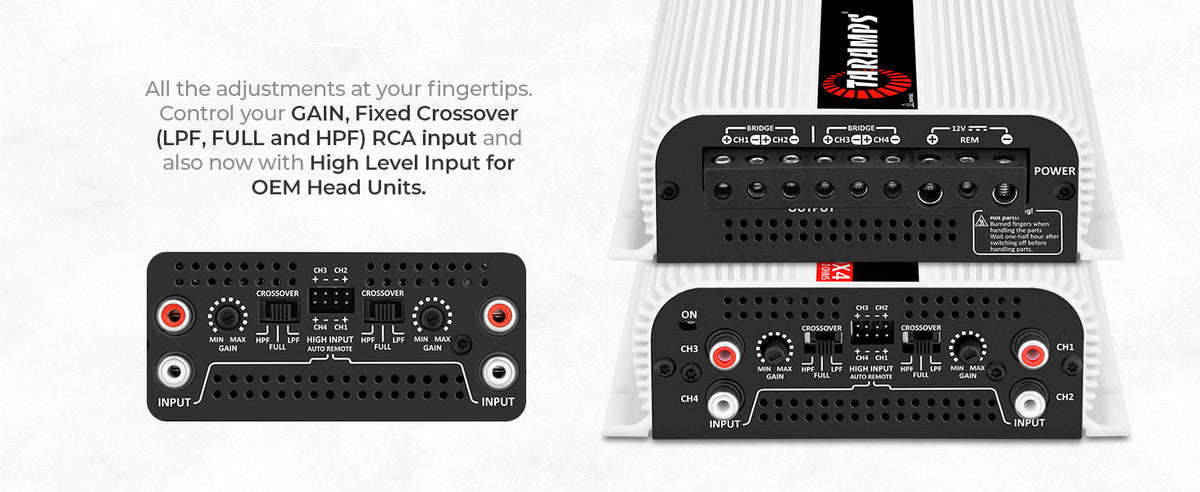

INPUT Inputs of signals to be amplified. LEVEL It sets the amplifier input sensitivity, which allows an optimal adjustment to the output signals levels. CROSSOVER Set the operating mode of amplifier.

SPECS & DOWNLOADS

DIMENSIONS
5.43" x 1.89" x 9.84" (138 x 48 x 250 mm)
DOWNLOADS
Download PDF
NUMBER OF CHANNELS
4
MAXIMUM POWER
Nominal Power @14.4VDC 2 Ohms: 1200W RMS (4 x 300W RMS) 4 Ohms: 740W RMS (4 x 185W RMS) 2 Bridged Channels 4 Ohms: 1200 W RMS (2 x 600W RMS)
INPUT SENSITIVITY
(RCA) - 4V (min.) / 250mV (max.) (WIRE) - >10V (min.) / 3V (max.)
SIGNAL TO NOISE RATIO
>90dB
FREQUENCY RESPONSE
(FULL RANGE) - 8Hz ~ 25KHz (-3dB)
CROSSOVER HIGH PASS (HPF)
90Hz (-12dB/8ª) Fixed
CROSSOVER LOW PASS (LPF)
90Hz (-12dB/8ª) Fixed
INPUT IMPEDANCE
10K Ohms (RCA)
MINIMUM SUPPLY VOLTAGE
9VDC
MAXIMUM SUPPLY VOLTAGE
16VDC
CONSUMPTION AT REST
0.9A
MAXIMUM MUSIC CONSUMPTION
55A
WEIGHT
2.73 lb (1.24 Kg)
EAN
7908706601022
