1200 Watts

Taramps DS 1200x4 Car Audio Amplifier

$285 $199
Sold out
The DS 1200x4 multichannel amplifier boasts 4 channels at 300 Watts RMS each, maxing out at 1200 Watts RMS at 2 ohms. It features include adjustable input sensitivity and a comprehensive crossover system, with robust connections for speakers and power supply.
IMPEDANCE
2 OHMS
RANGE
FULL RANGE
30 DAY RETURN POLICY
1 YEAR WARRANTY
USA FREE SHIPPING
Specs & Downloads
Recommended Products
Reviews
Recently Viewed

THE DS 1200x4

The DS 1200×4 is synonymous with multichannel amplifier. It has 4 channels of 300 Watts RMS, with a maximum power of 1200 Watts RMS, at 2 ohm and is compatible with any frequency, that is to say, it is a FULL RANGE amp. Versatility, efficiency and quality in a single product.

SUPERIOR VERSATILITY

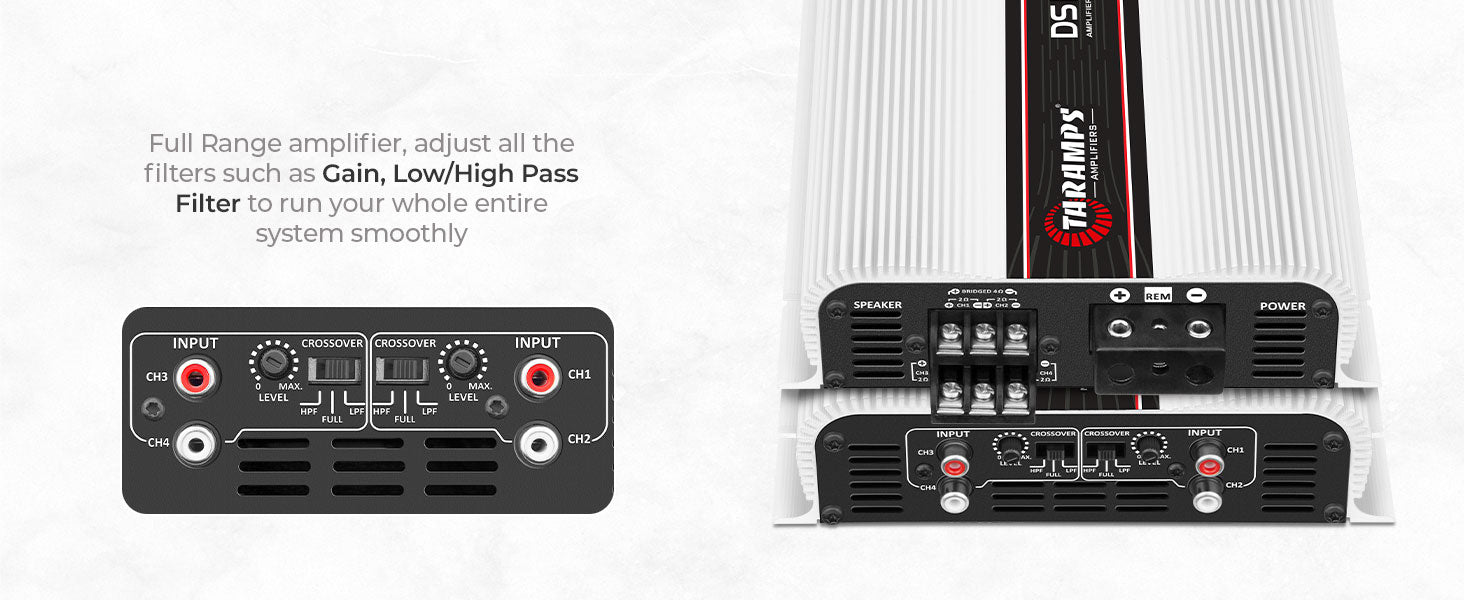

INPUT: Inputs of signals to be amplified. LEVEL: It sets the amplifier input sensitivity, which allows an optimal adjustment to the output signals levels. CROSSOVER: Set the operating mode of amplifier.

SPECS & DOWNLOADS

DIMENSIONS
7.17" x 2.05" x 11.06" (182 x 52 x 281mm)
POWER
1200 Watts
CONNECTIVITY
4
DOWNLOADS
Download PDF
CROSSOVER HIGH PASS (HPF)
90Hz (-12dB/8a) Fixed
CROSSOVER LOW PASS (LPF)
90Hz (-12dB/8a) Fixed
INPUT IMPEDANCE
18K Ohms
OUTPUT IMPEDANCE
2 Ohms
PROTECTION SYSTEM
Output overload
MINIMUM SUPPLY VOLTAGE
9VDC
MAXIMUM SUPPLY VOLTAGE
16VDC
CONSUMPTION AT REST
1.8A
MAXIMUM MUSIC CONSUMPTION
@12.6VDC 67.5A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
135A
WEIGHT
4.62lb (2,1kg)
EAN
7898556844130
