800 Watts

Taramps DS 800x4 Car Audio Amplifier

$153 $135
11% OFF
Discover unparalleled versatility with the DS 800×4 amplifier! Ideal for any speaker type, it delivers 800W RMS across four channels with bridge options. Features both RCA and high-level inputs for seamless integration with factory setups. Perfect for enhancing every audio detail.
IMPEDANCE
1 and 2 OHMS
RANGE
Full Range
30 DAY RETURN POLICY
1 YEAR WARRANTY
USA FREE SHIPPING
Specs & Downloads
Recommended Products
Reviews
Recently Viewed

THE DS 800x4

The DS 800×4 is synonymous with multichannel amplifier. It has 4 channels of 200 Watts RMS, with a maximum power of 800 Watts RMS, at 1 or 2 ohm and is compatible with any frequency, that is to say, it is a FULL RANGE amp. Versatility, efficiency and quality in a single product.

SUPERIOR VERSATILITY

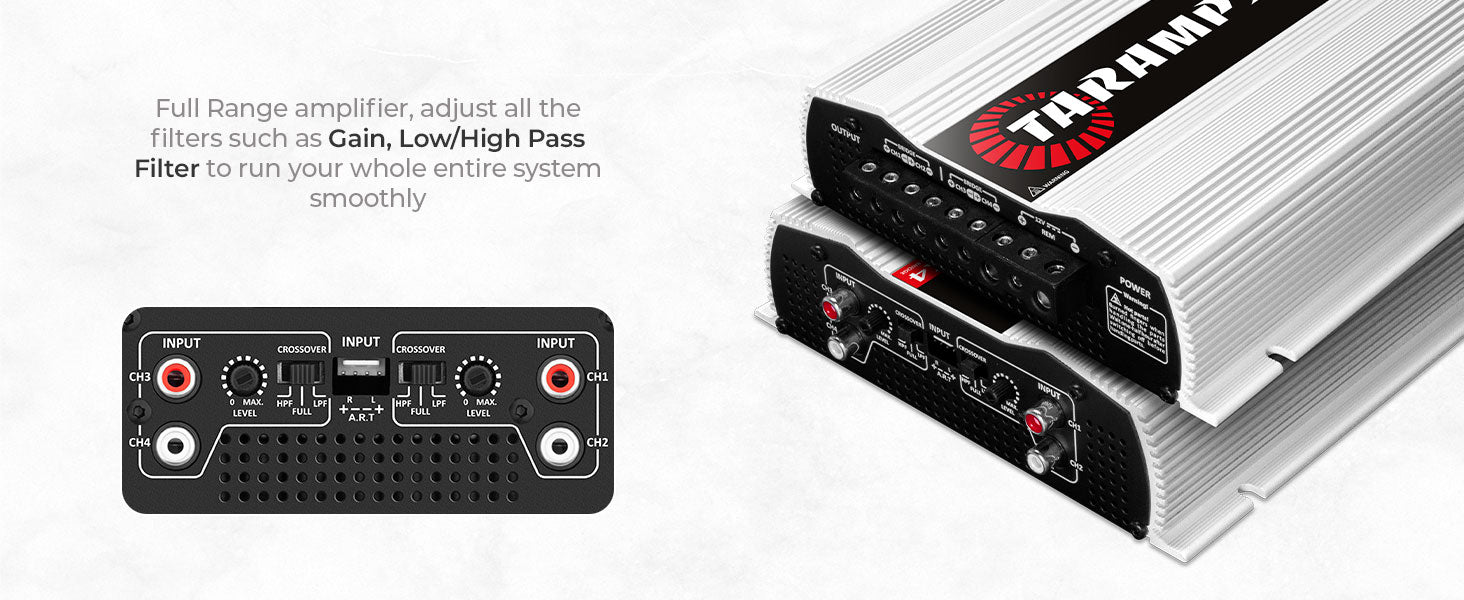

INPUT Inputs of signals to be amplified. LEVEL It sets the amplifier input sensitivity, which allows an optimal adjustment to the output signals levels. CROSSOVER Set the operating mode of amplifier.

SPECS & DOWNLOADS

DIMENSIONS
7.24" x 2.13" x 7.48" (173 x 52 x 227mm)
POWER
800 Watts
CONNECTIVITY
4
DOWNLOADS
Download PDF
NUMBER OF CHANNELS
4
INPUT SENSITIVITY
250mV
SIGNAL TO NOISE RATIO
>88dB
FREQUENCY RESPONSE
10Hz ~ 22KHz (-3dB)
CROSSOVER HIGH PASS (HPF)
90Hz (-12dB/8ª) Fixed
CROSSOVER LOW PASS (LPF)
90Hz (-12dB/8ª) Fixed
INPUT IMPEDANCE
10K Ohms
OUTPUT IMPEDANCE
1 Ohm
PROTECTION SYSTEM
Output overload
MINIMUM SUPPLY VOLTAGE
9VDC
MAXIMUM SUPPLY VOLTAGE
16VDC
CONSUMPTION AT REST
1.0A
MAXIMUM MUSIC CONSUMPTION
51A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
102A
WEIGHT
3.04lb (1,43kg)
EAN
7898556844826
