800 Watts

Taramps TS 800x4 Car Audio Amplifier

$134 $99.95
25% OFF

Discover the TS 800x4 2 Ohms amplifier, tailored for modern audio needs! This 4-channel amp seamlessly integrates with factory radios and multimedia systems, offering 800 watts of power without adapters. It features robust connectors for safe, easy installation and versatile crossover settings for optimal sound customization. Elevate your audio experience effortlessly.

IMPEDANCE
1 & 2 OHMS
EFFICIENCY
CLASS D
RANGE
FULL RANGE
30 DAY RETURN POLICY
1 YEAR WARRANTY
USA FREE SHIPPING
Specs & Downloads
Recommended Products
Reviews
Recently Viewed

THE TS 800x4

The TS 800X4 you already know is now also available in a 1 Ohm version, giving you even more flexibility to power your sound system.

Both the 1 Ohm and 2 Ohm versions feature 4 channel high-level inputs with automatic activation, which means no adapters are needed when connecting to original head units or multimedia players.  Quick and easy installation.

With 800W RMS distributed across 4 channels, and bridgeable connections, the TS 800X4 offers incredible versatility. Whether you’re powering woofers, subwoofers, midrange drivers, tweeters, or more, this amp is the perfect match for your setup.

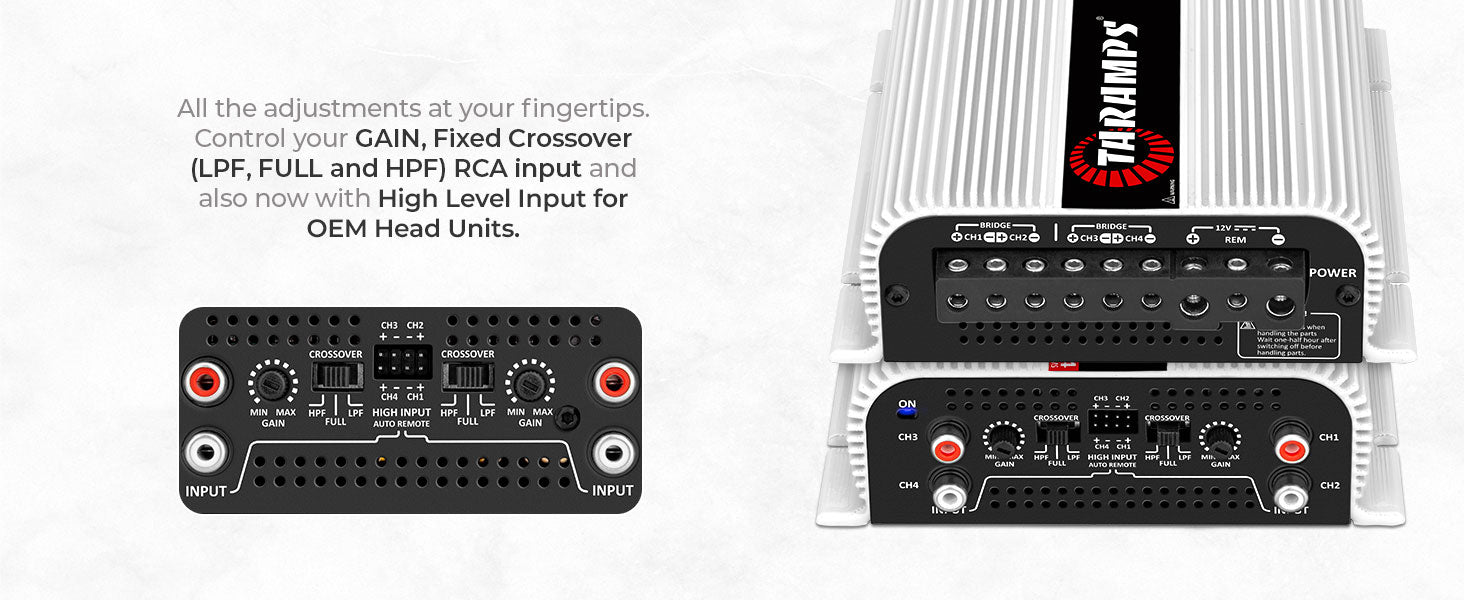

And of course, staying true to Taramps’ standards, the TS 800X4 features RCA inputs, Gain control, and a fixed Crossover (HPF, LPF, and Full) — giving you total control and clean, high-quality sound.

A standout feature is the robust and secure power and speaker connector, making installation easier and more reliable.

Whether you choose the 2 Ohm or 1 Ohm version, the TS 800X4 is all about high power, sound quality, and ease of use — everything you need for a superior audio experience.

PERFORMANCE AND CONTROL

The TS 800x4 features adjustable High Pass (HPF) and Low Pass (LPF) crossover controls, allowing you to fine-tune the frequencies sent to your speakers. This makes it a versatile choice for mids, drivers, tweeters, and other full-range setups.

SPECS & DOWNLOADS

DIMENSIONS
5.43" x 1.89" x 6.89" (138 x 48 x 175mm)
DOWNLOADS
Download PDF
OPERATION CLASS
Class D
NUMBER OF CHANNELS
4
MAXIMUM POWER
Nominal Power @14.4VDC 2 Ohms: 800W RMS (4 x 200W RMS) 4 Ohms: 544W RMS (4 x 136W RMS) 2 Bridged Channels 4 Ohms: 800 W RMS (2 x 400W RMS
INPUT SENSITIVITY
(RCA): 4V (min.) / 250mV (max.) | (WIRE): >10V (min.) / 3V (max.)
SIGNAL TO NOISE RATIO
>90dB
FREQUENCY RESPONSE
10Hz ~ 20KHz (-3dB)
CROSSOVER HIGH PASS (HPF)
90Hz (-12dB/8ª) Fixed
CROSSOVER LOW PASS (LPF)
10Hz ~ 20KHz (-3dB)
INPUT IMPEDANCE
10K Ohms (RCA)
OUTPUT IMPEDANCE
2 Ohms
PROTECTION SYSTEM
Output Short Circuit
MINIMUM SUPPLY VOLTAGE
9VDC
MAXIMUM SUPPLY VOLTAGE
16VDC
CONSUMPTION AT REST
0.9A
MAXIMUM MUSIC CONSUMPTION
38A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
76A
WEIGHT
1.91lb (0.87Kg)
EAN
7898556849043
