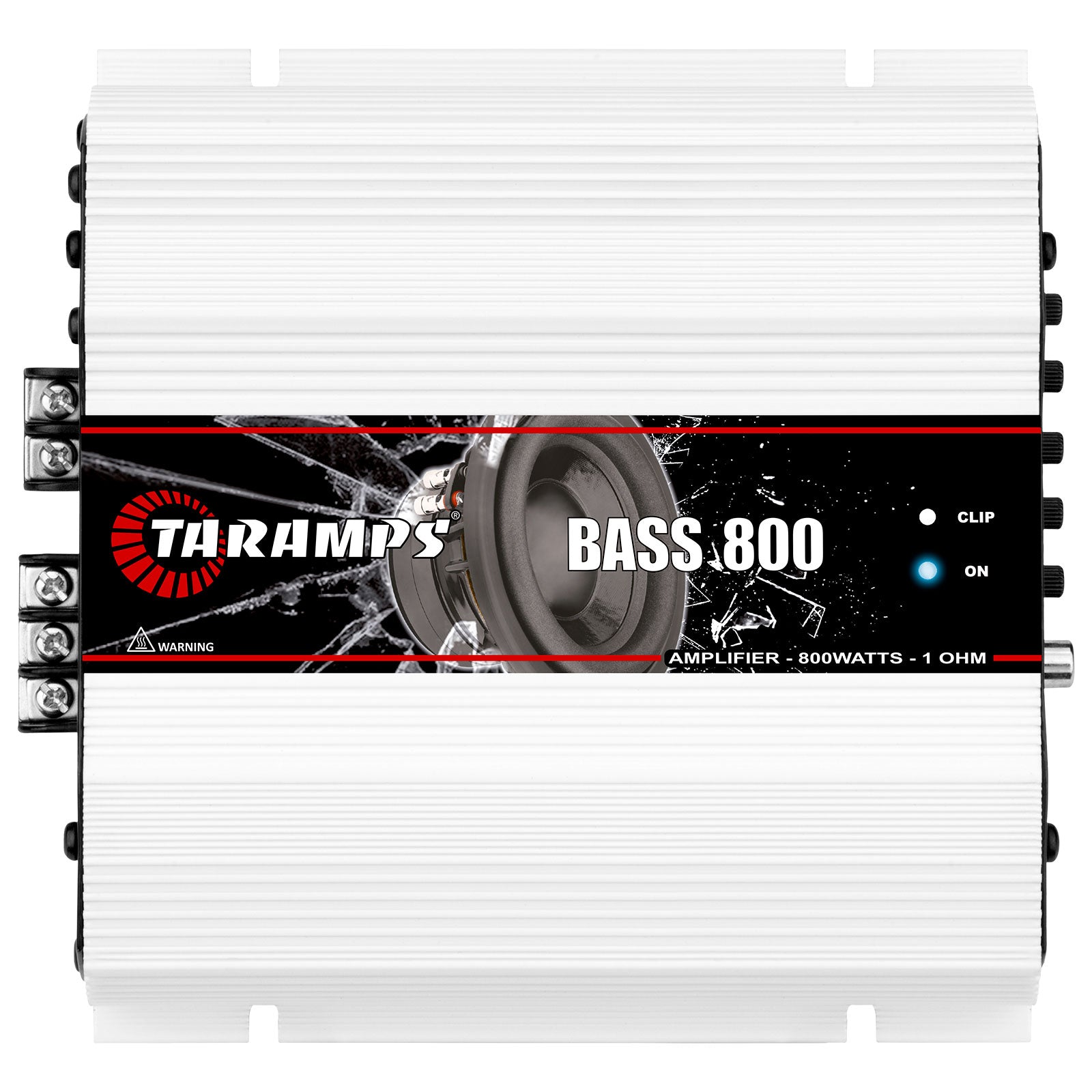

The Bass 800
Unleash The Bass
SPECS & DOWNLOADS
DIMENSIONS
7.09" x 2.01" x 6.89" (180 x 51 x 175 mm)
DOWNLOADS
OPERATION CLASS
D
NUMBER OF CHANNELS
01
MAXIMUM POWER
@14.4VDC - 1 Ohm: 800W RMS | 2 Ohms: 800W RMS
INPUT SENSITIVITY
200mV (RCA) / 6V (WIRE)
SIGNAL TO NOISE RATIO
>90dB
FREQUENCY RESPONSE
8Hz ~ 250Hz (-3dB)

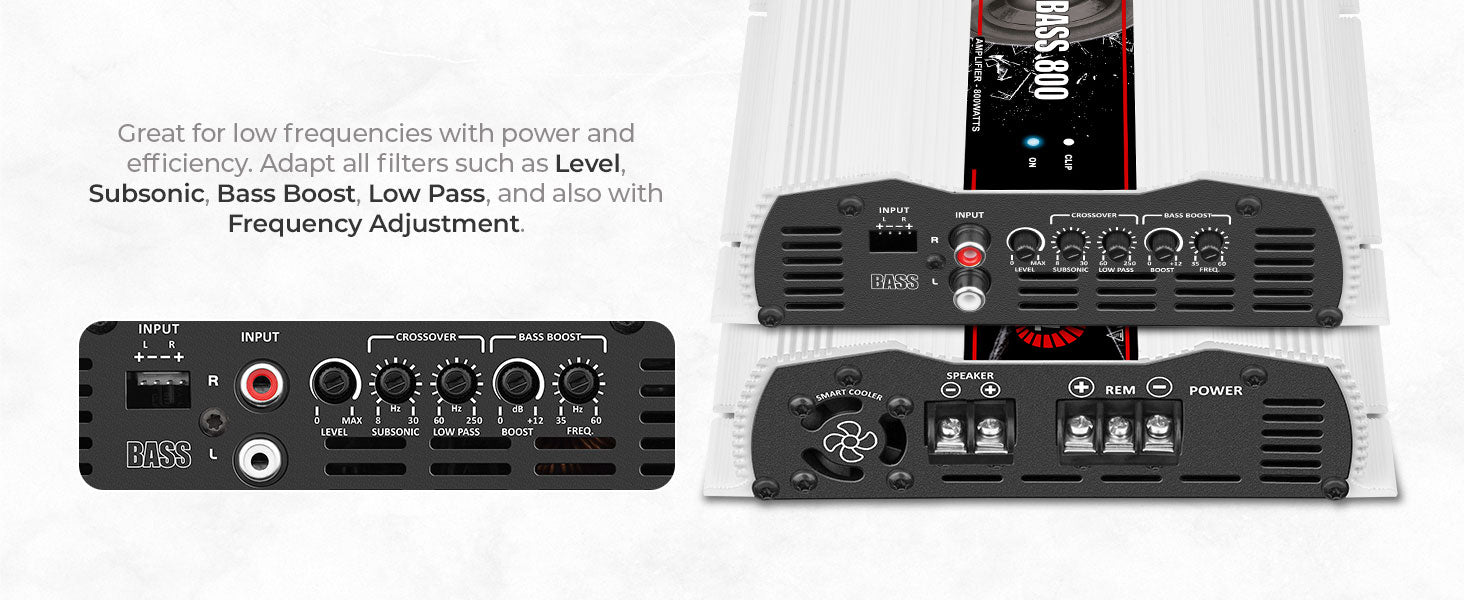

CROSSOVER HIGH PASS (HPF)
8Hz ~ 30Hz (-12dB/8ª) Variable
CROSSOVER LOW PASS (LPF)
60Hz ~250Hz (-12dB/8ª) Variable
INPUT IMPEDANCE
10K Ohms
PROTECTION SYSTEM
Output overload, high/low supply voltage
MINIMUM SUPPLY VOLTAGE
9.5VDC
MAXIMUM SUPPLY VOLTAGE
16VDC
CONSUMPTION AT REST
1 Ohm: 1.20A | 2 Ohms: 1.0A
MAXIMUM MUSIC CONSUMPTION
@14.4VDC - 1Ohm: 43A | 2 Ohms: 37A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
1 Ohm: 86A | 2 Ohms: 74A
WEIGHT
2.69 lb (1.22 Kg)
EAN
1 Ohm: 7898556845175 | 2 Ohms: 7898556845182
