1200 Watts

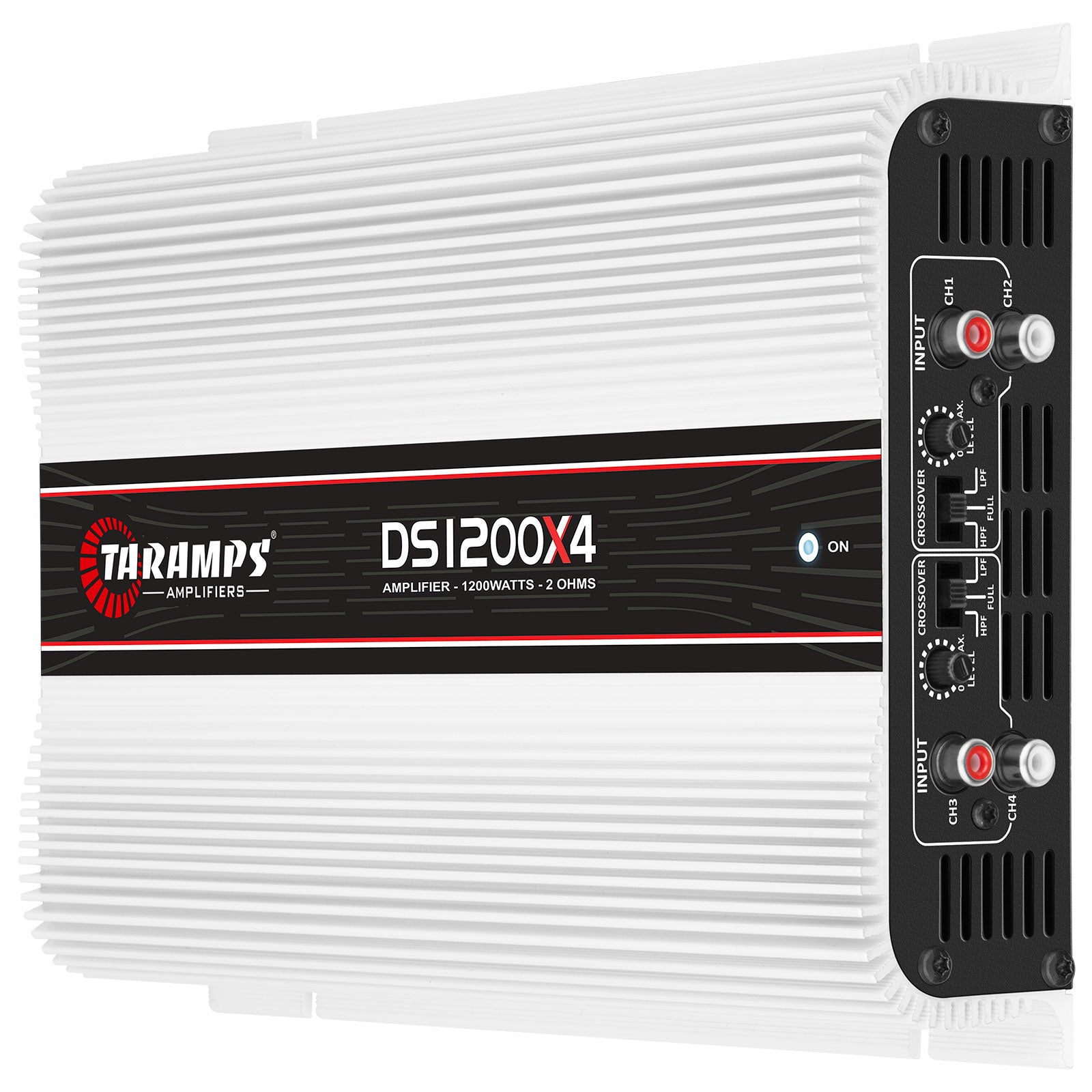

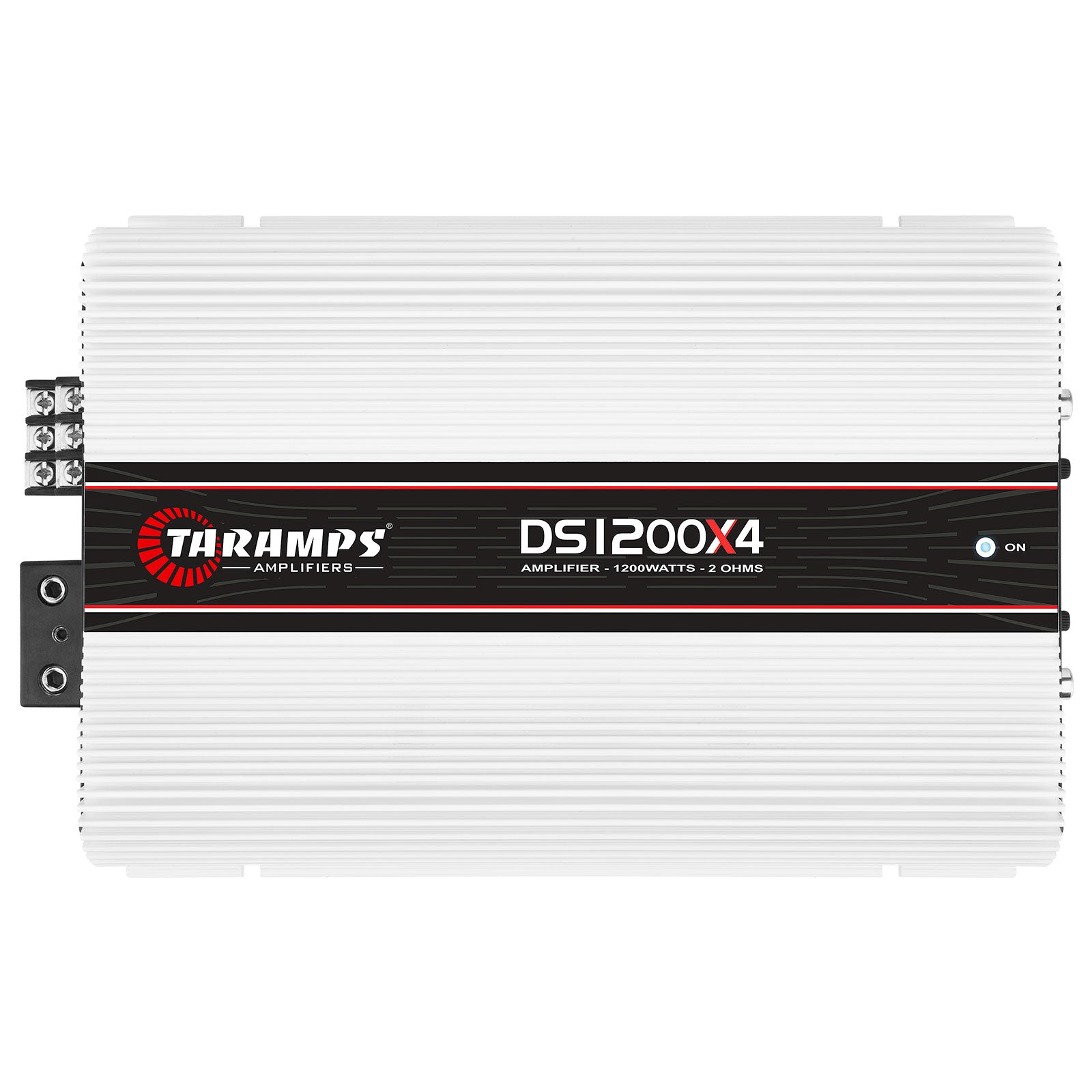

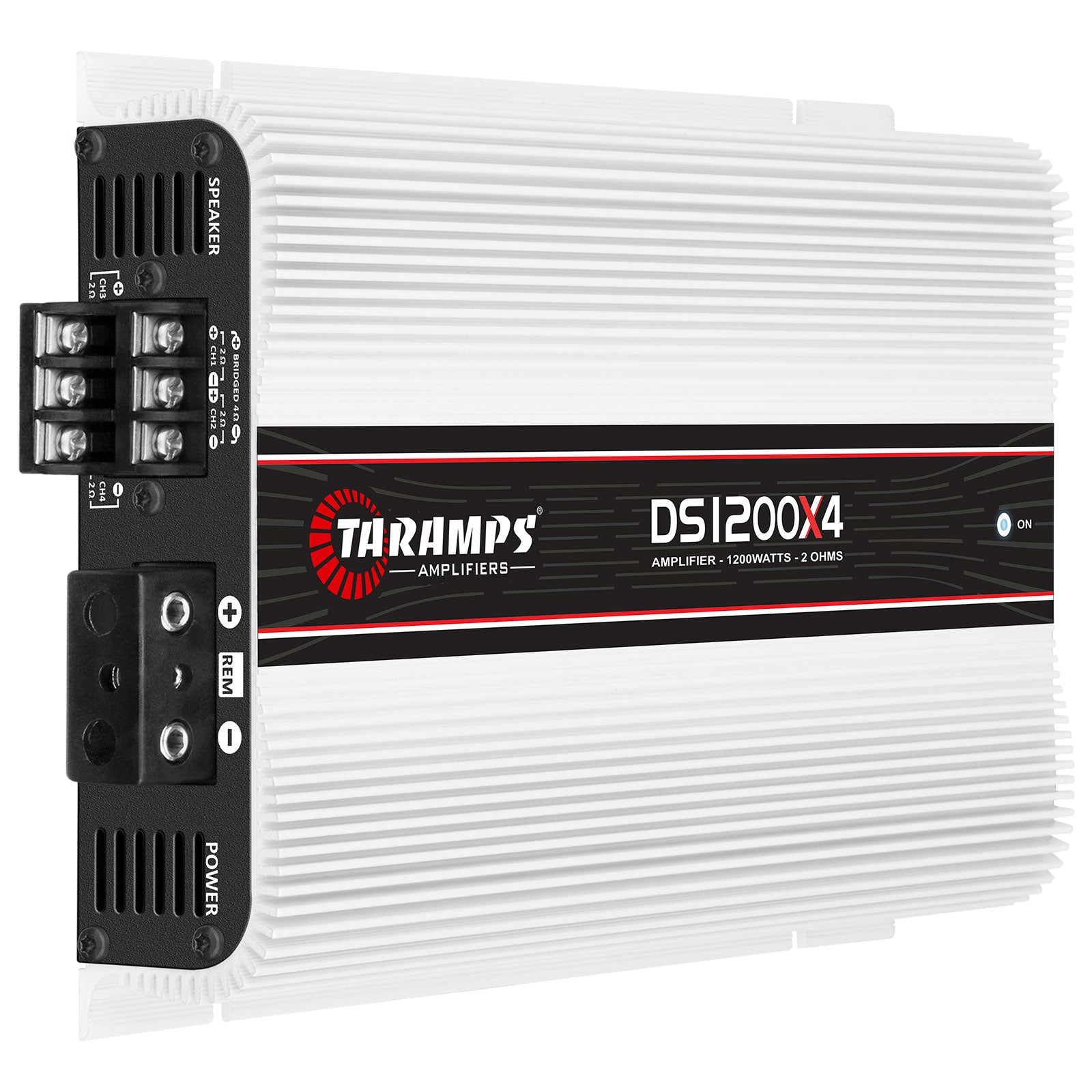

Taramps DS 1200x4 Car Audio Amplifier

$225 $194.99
13% OFF

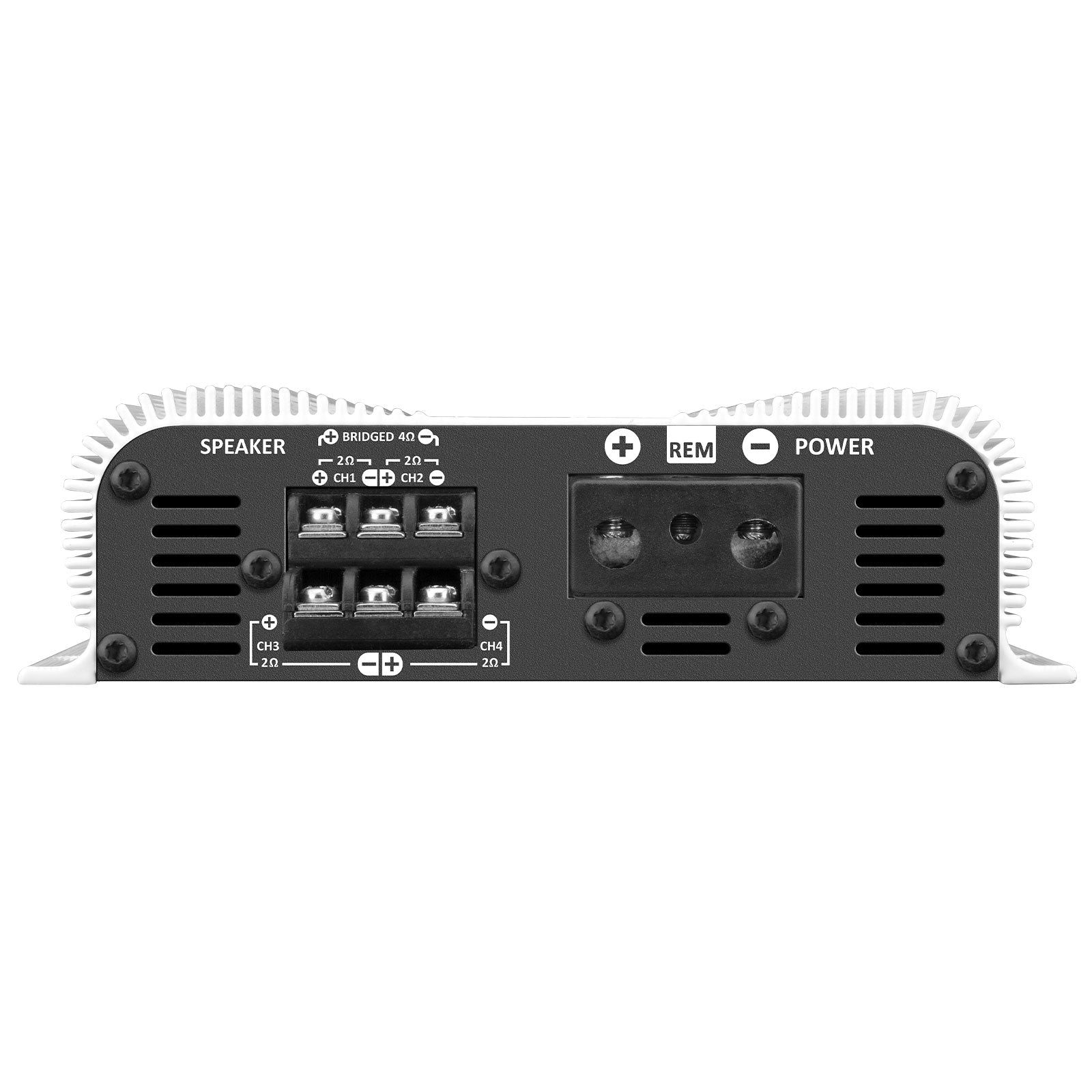

The DS 1200x4 multichannel amplifier boasts 4 channels at 300 Watts RMS each, maxing out at 1200 Watts RMS at 2 ohms. It features include adjustable input sensitivity and a comprehensive crossover system, with robust connections for speakers and power supply.
IMPEDANCE
2 OHMS
RANGE
FULL RANGE
30 DAY RETURN POLICY
1 YEAR WARRANTY
USA FREE SHIPPING
Specs & Downloads
Recommended Products
Reviews
Recently Viewed

THE DS 1200x4

The Taramps DS 1200x4 is a high-performance 4-channel amplifier engineered for audio enthusiasts who demand power, clarity, and versatility in a compact package. Delivering 300 Watts RMS per channel at 2 ohms, this amp pushes a total of 1200 Watts RMS, making it ideal for driving speakers, midrange drivers, or even subwoofers in a multi-channel setup.

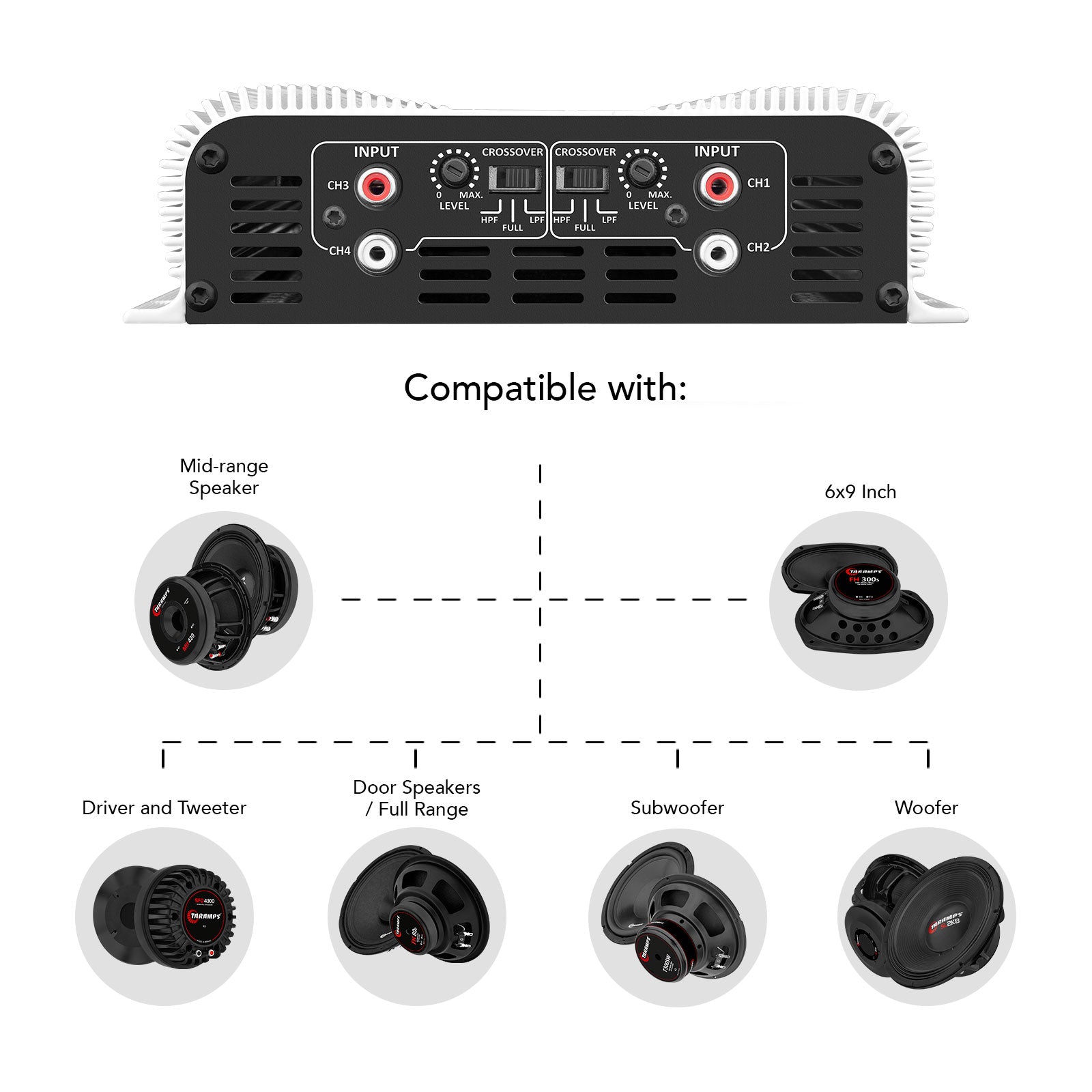

Designed as a FULL RANGE amplifier, the DS 1200x4 can handle frequencies across the entire audio spectrum – from deep bass to crisp highs – allowing it to be used in a wide variety of sound systems. Whether you're powering door speakers, tweeters, or mid-bass drivers, this amp does it all.

SUPERIOR VERSATILITY

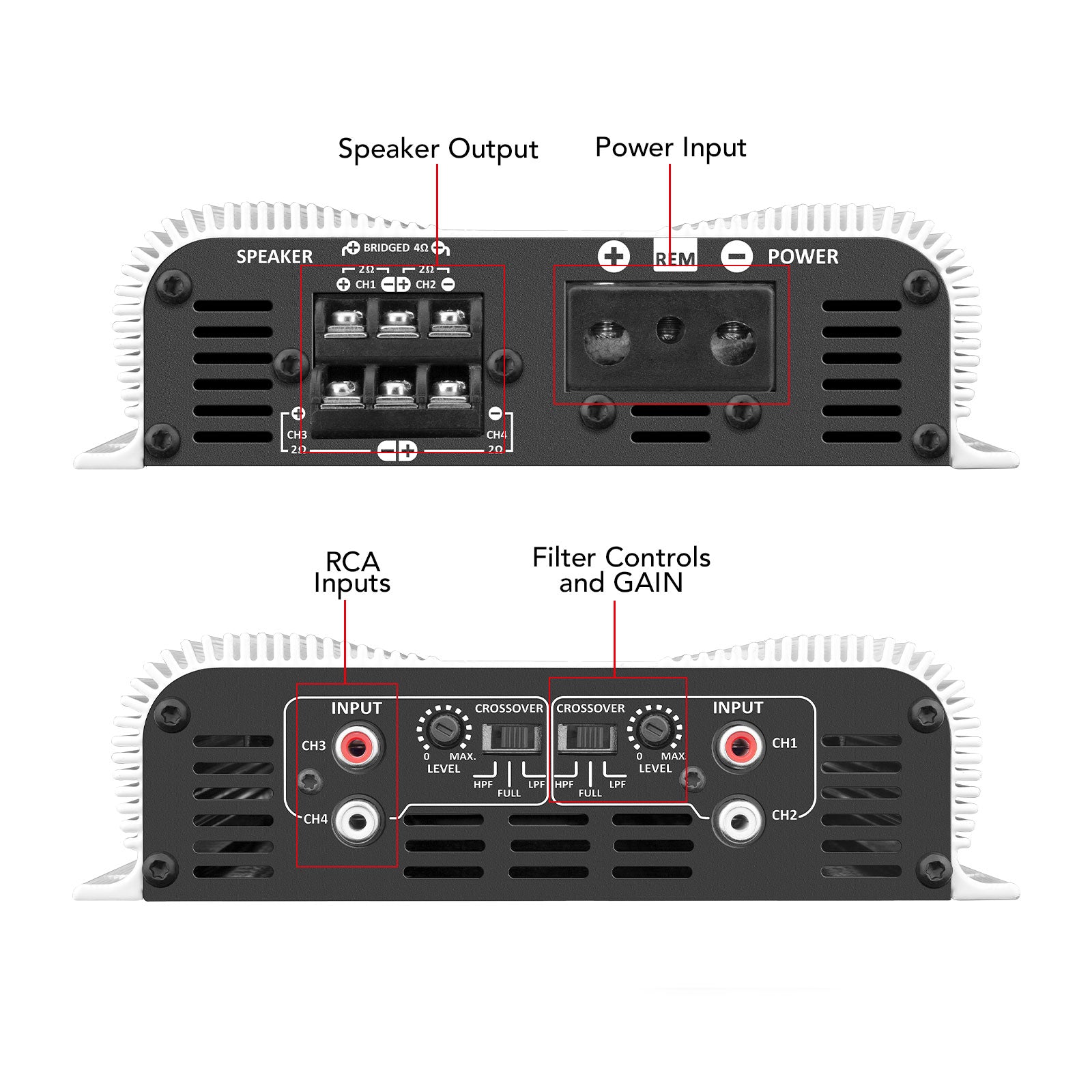

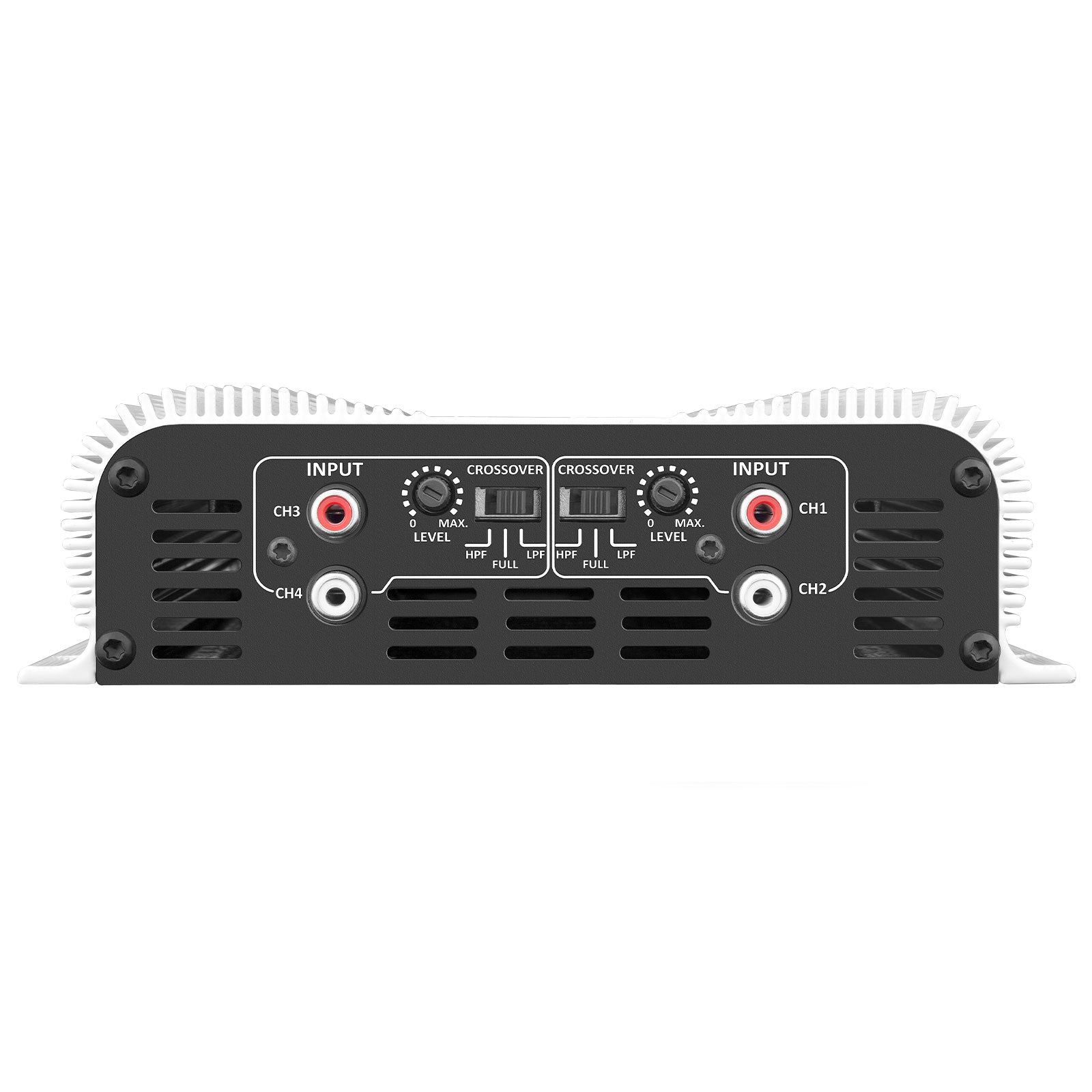

INPUT: Inputs of signals to be amplified. LEVEL: It sets the amplifier input sensitivity, which allows an optimal adjustment to the output signals levels. CROSSOVER: Set the operating mode of amplifier.

SPECS & DOWNLOADS

DIMENSIONS

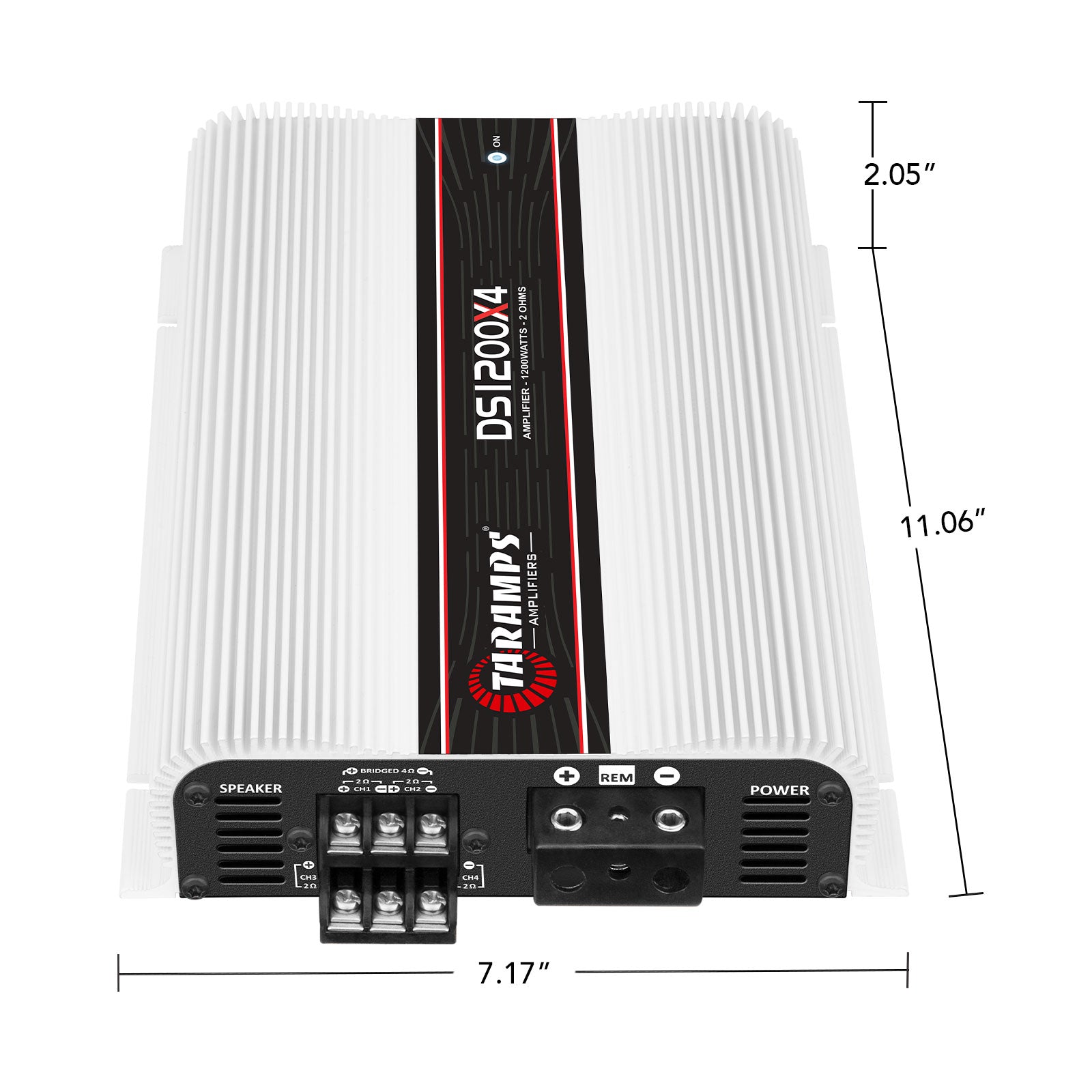

7.17" x 2.05" x 11.06" (182 x 52 x 281mm)
POWER
1200 Watts
CONNECTIVITY
4
DOWNLOADS
Download PDF
OPERATION CLASS
D
NUMBER OF CHANNELS
4
INPUT SENSITIVITY
250mV
SIGNAL TO NOISE RATIO
>88dB
FREQUENCY RESPONSE
9Hz ~ 27KHz (-3dB)
CROSSOVER HIGH PASS (HPF)
90Hz (-12dB/8a) Fixed
CROSSOVER LOW PASS (LPF)
90Hz (-12dB/8a) Fixed
INPUT IMPEDANCE
18K Ohms
OUTPUT IMPEDANCE
2 Ohms
PROTECTION SYSTEM
Output overload
MINIMUM SUPPLY VOLTAGE
9VDC
MAXIMUM SUPPLY VOLTAGE
16VDC
CONSUMPTION AT REST
1.8A
MAXIMUM MUSIC CONSUMPTION
@12.6VDC 67.5A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
135A
WEIGHT
4.62lb (2,1kg)
EAN
7898556844130
