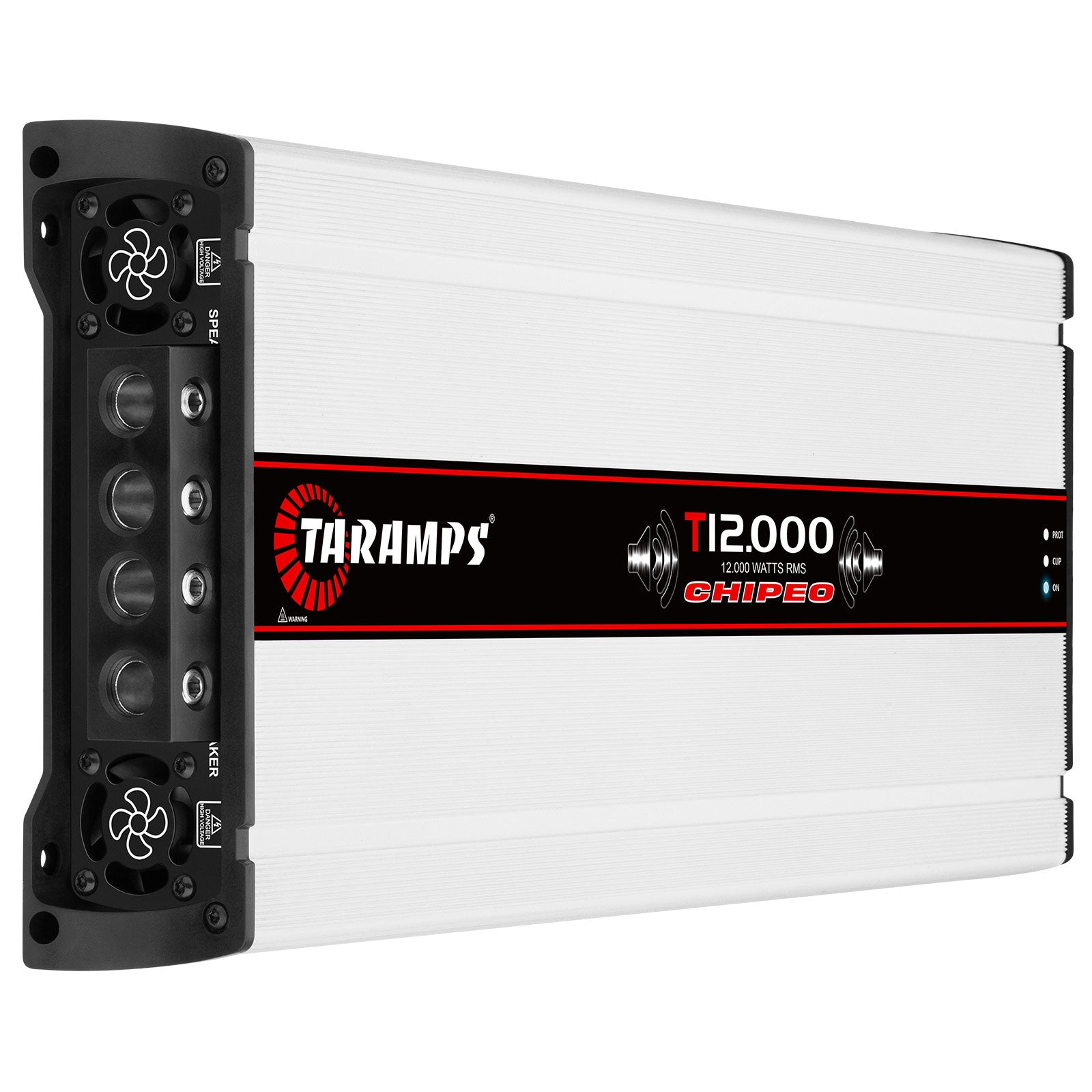

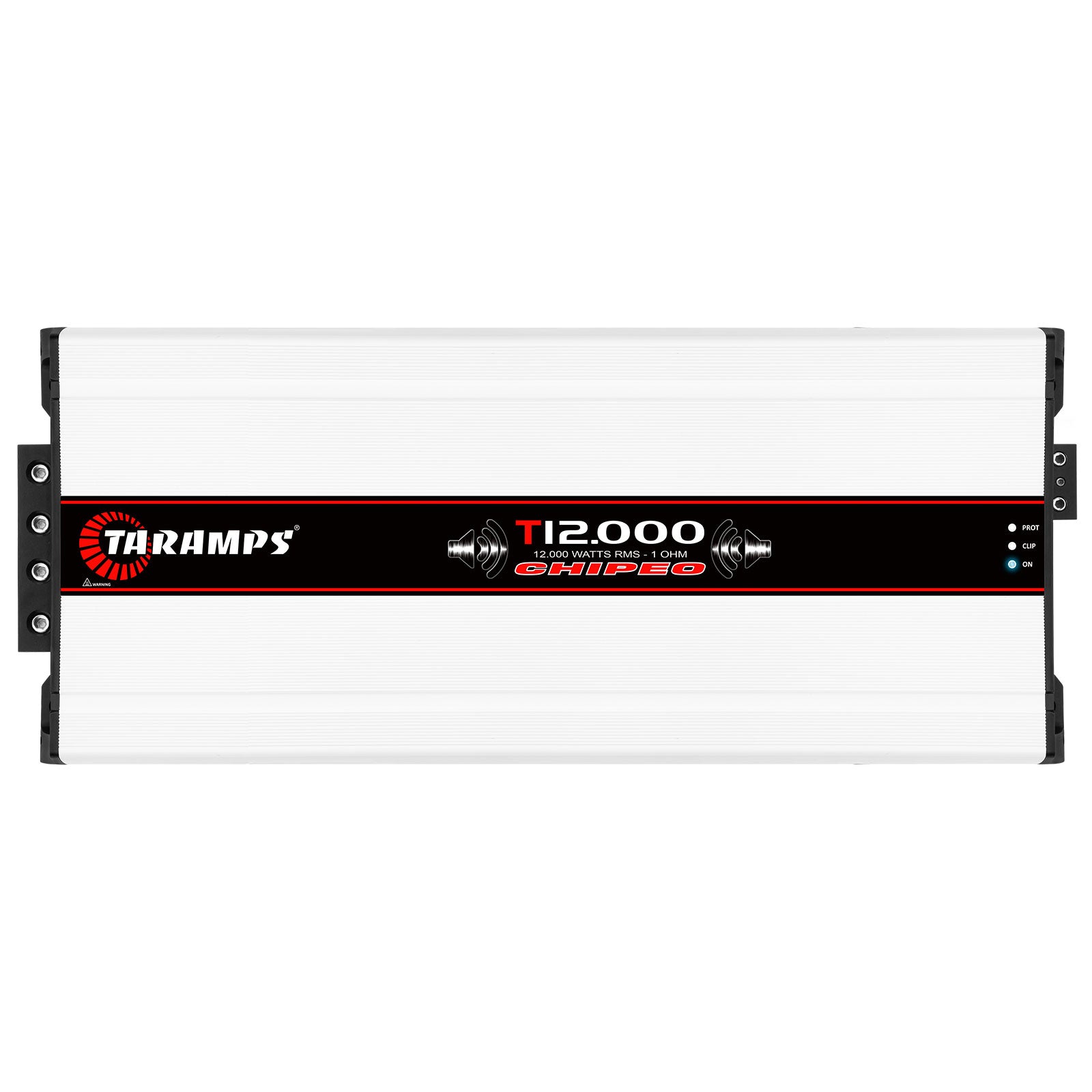

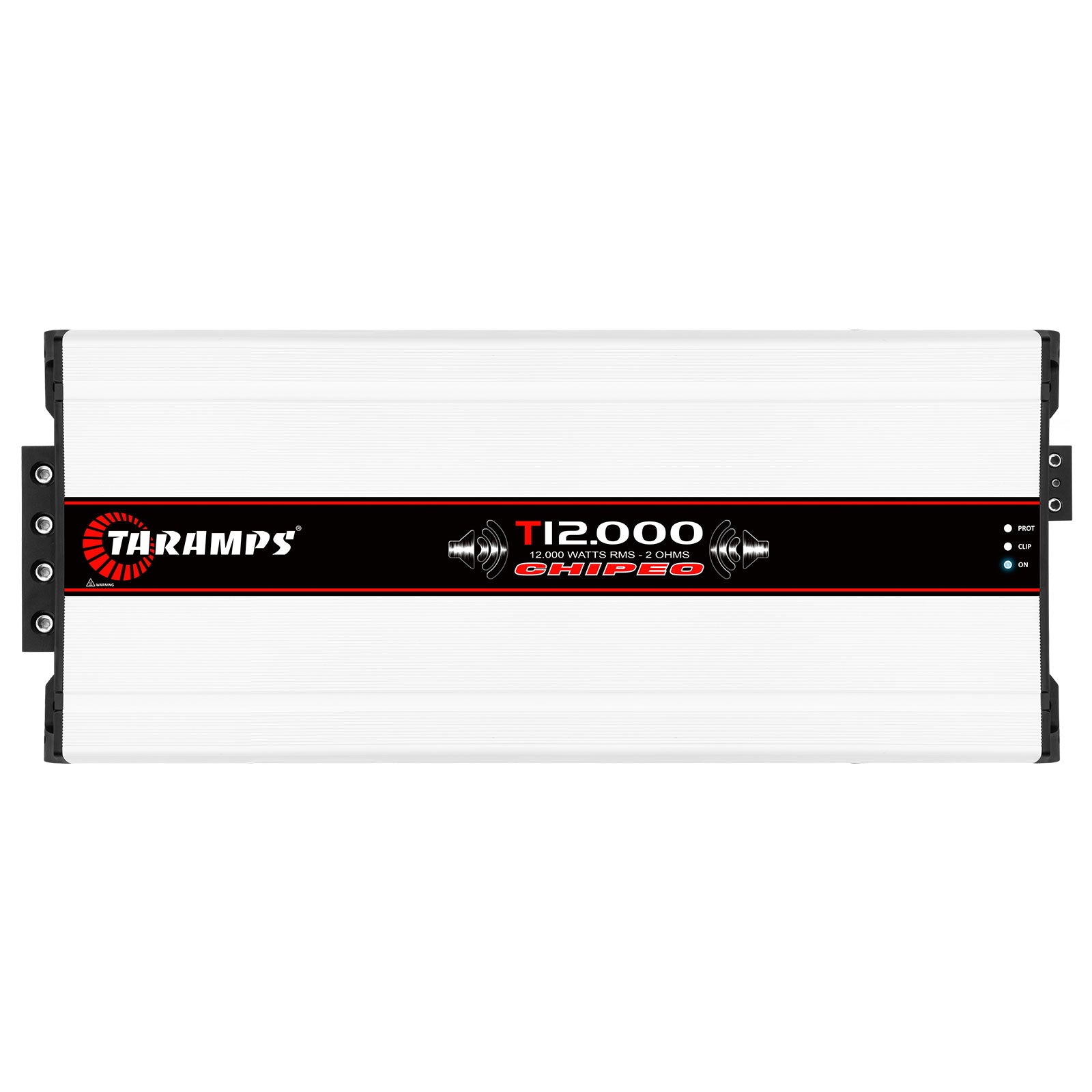

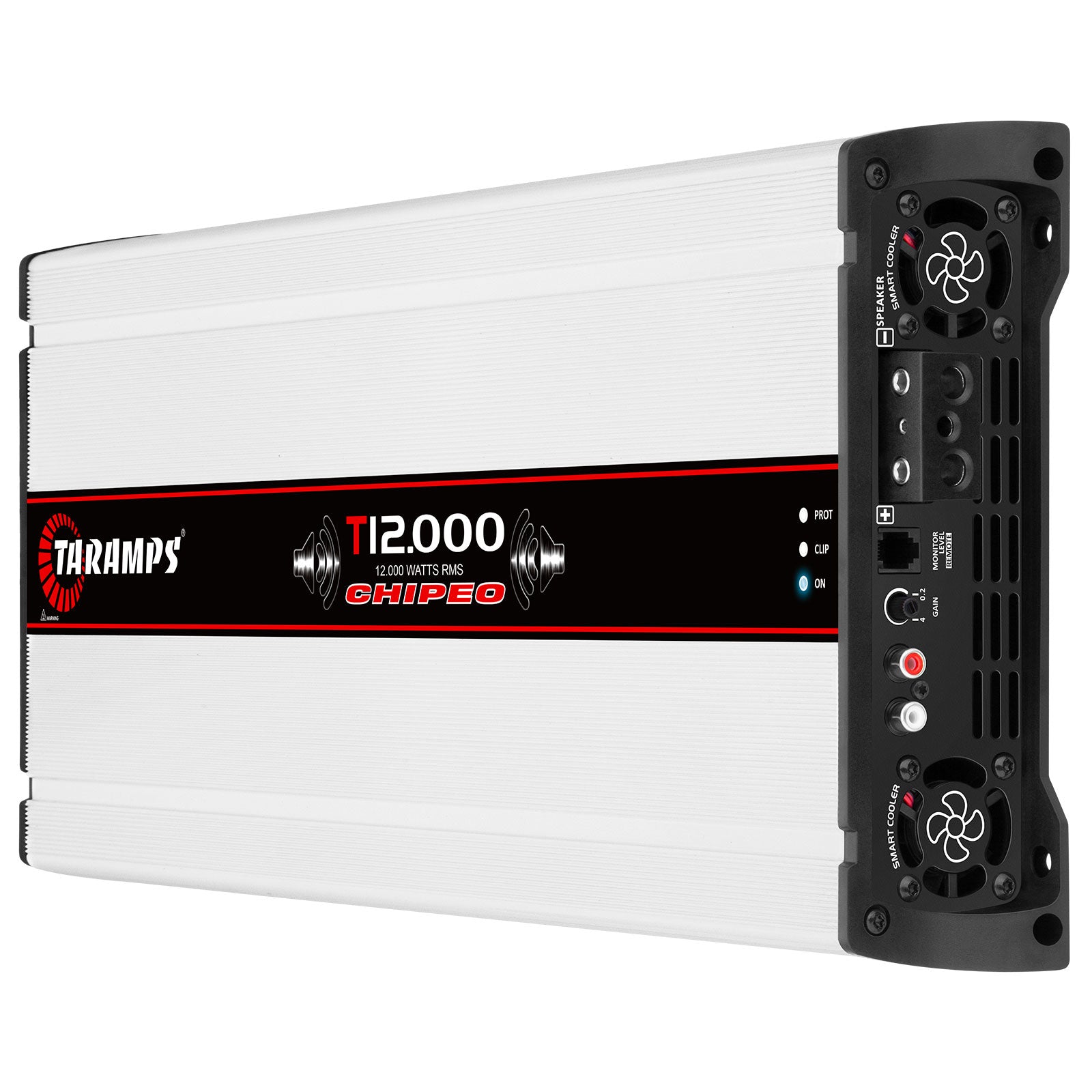

THE T 12.000 CHIPEO
SPECS & DOWNLOADS
DIMENSIONS
8.98" x 2.52" x 20.94" (228 x 64 x 532mm)
FREQUENCY RESPONSE
5Hz ~ 5KHz (-3dB)
INPUT IMPEDANCE
10K Ohms
PROTECTION SYSTEM
Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection
MINIMUM SUPPLY VOLTAGE
9VDC
MAXIMUM SUPPLY VOLTAGE
17VDC
CONSUMPTION AT REST
5.60A
MAXIMUM MUSIC CONSUMPTION
554A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
1108A
WEIGHT
16.72lb (7.60Kg)
EAN
7908706600056
