400 Watts

Taramps TS 400X4 HIGH LEVEL INPUT Car Audio Amplifier

$99 $79
20% OFF

Upgrade effortlessly with the TS 400x4 amplifier, featuring high input with automatic activation—no adapters needed. With 400 watts across 4 channels, versatile connectivity, and reliable Taramps features, it enhances your music experience seamlessly.

IMPEDANCE
2 OHMS
RANGE
FULL RANGE
30 DAY RETURN POLICY
1 YEAR WARRANTY
USA FREE SHIPPING
Specs & Downloads
Recommended Products
Reviews
Recently Viewed

THE TS 400X4 HIGH LEVEL INPUT

We know that the demand for amplifiers that are compatible with original players has been growing every day. With that in mind, we created a version of the TS 400×4 that has a high input with automatic activation. This makes the use of adapters unnecessary, which is ideal for this type of application.

As it has 400 watts of power distributed across 4 channels, that can be connected to create two bridged channels, this product can be used with a wide variety of models of speakers, drivers and super tweeters.

Beyond that, it has the traditional RCA inputs, Gain adjustment and fixed Crossover (HPF, LPF and Full) that is characteristic of Taramps’ products.
All this and much more, so that your pleasure in listening to music becomes even greater.

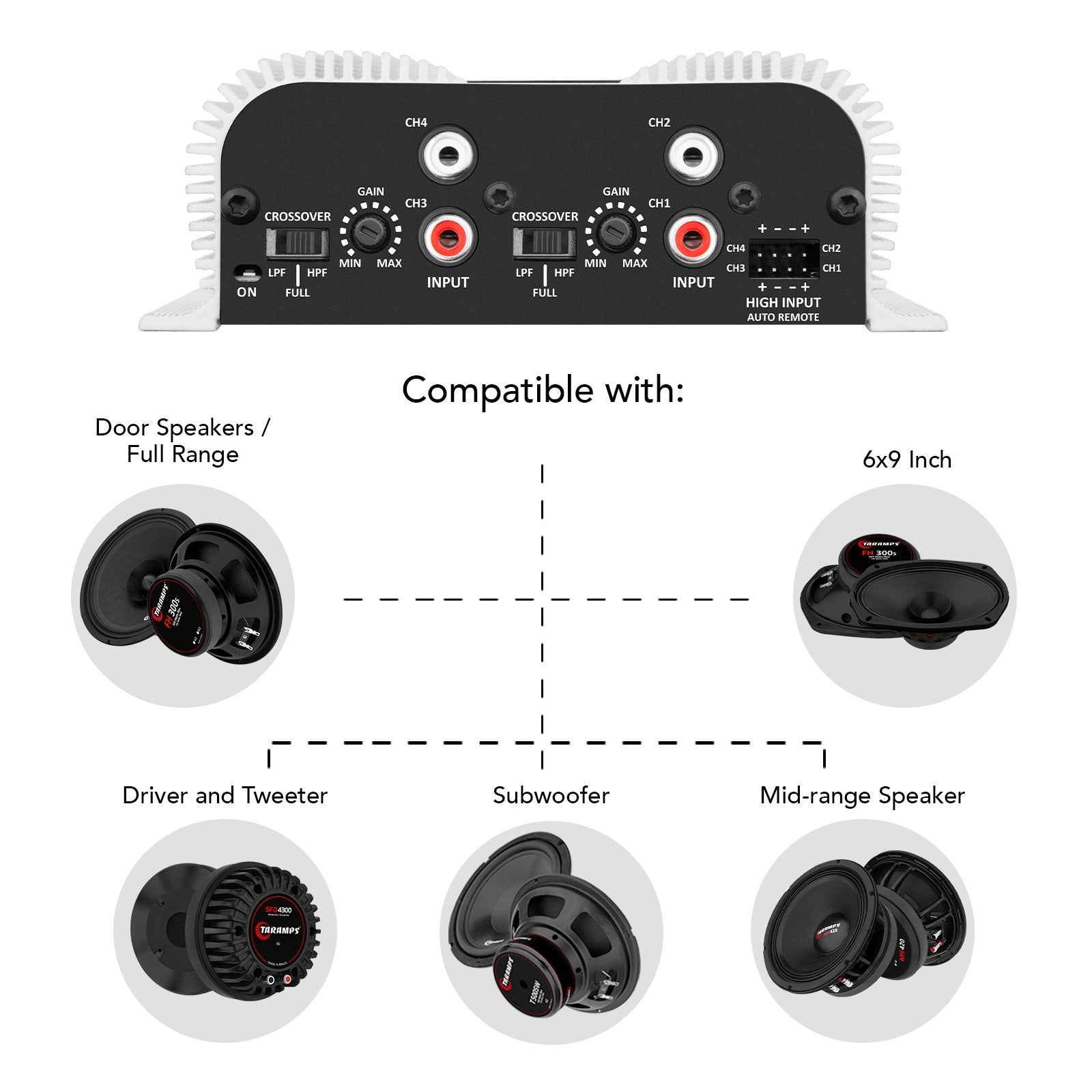

SUPERIOR VERSATILITY

The TS 400X4 features high-level (speaker-level) inputs, allowing it to connect directly to the speaker wires of the car's factory audio system. This enables easy integration into vehicles without an aftermarket head unit, making it suitable for upgrading existing audio systems without extensive modifications.

SPECS & DOWNLOADS

DIMENSIONS
3.50" x 1.14" x 4.7" (89 x 29 x 119mm)
POWER
400 watts
CONNECTIVITY
2
DOWNLOADS
Download PDF
OPERATION CLASS
CLASS D
NUMBER OF CHANNELS
4
MAXIMUM POWER
@ 13,8 VDC - 2 OHMS - 400 W RMS (4 x 100W RMS) @ 13,8 VDC - 4 OHMS - 252 W RMS (4 x 63W RMS) Bridge @ 13,8 VDC - 4 OHMS - 400W RMS (2 x 200W RMS)
INPUT SENSITIVITY
200mV (Vol = max.)
SIGNAL TO NOISE RATIO
> 90dB
FREQUENCY RESPONSE
18Hz ~ 30KHz (-3dB)
CROSSOVER HIGH PASS (HPF)
90 Hz (-12dB/8th)
CROSSOVER LOW PASS (LPF)
90 Hz (-12dB/8th)
INPUT IMPEDANCE
22K ohms
OUTPUT IMPEDANCE
2 ohms
PROTECTION SYSTEM
Thermal and Output Short
MINIMUM SUPPLY VOLTAGE
8 VDC
MAXIMUM SUPPLY VOLTAGE
16 VDC
CONSUMPTION AT REST
0.8A
MAXIMUM MUSIC CONSUMPTION
@13,8VDC: 16.5A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL
@13,8VDC: 33A
WEIGHT
1.322 lbs (0.6 kg)
EAN
7898556840682
